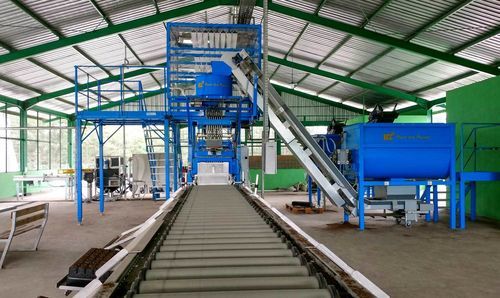

Automatic tray filler

Overview
The Multi-Row Fully-Automatic FiberCell filler is engineered for large-scale automated nurseries requiring high throughput and technical integration. Production capacity reaches up to 34 000 cells/hour (applies to 16-row configuration). The machine performs paper roll feeding, heat gluing, media filling and precision cell cutting. Cell length is adjustable and filled cells are automatically placed into holders. Units include a communication module for remote access and are fully compatible with BCC sowing and cutting production lines.

Key Benefits

• Design based on tray holder configuration; number of lines matches holder rows.
• High-capacity solution for large-scale operations (up to 34 000 cells/hour) to minimise labour.
• Complete filling functions: paper roll feeding, heat gluing, media filling and cell cutting.
• Adjustable cell length for different FiberCell sizes (Ø20–80 mm; length 40–120 mm).
• Operating speed depends on tray and FiberCell size; maximum cycle 1.7–2 seconds.
• Automated placement of cells into holders and integration with BCC production lines.
• Communication module for remote diagnostics and backup support.

Product Leaflets
Fully-Automatic Multi-Row FiberCell Filling Machine - English

Technical specifications

• Dimensions L×W×H (m): 6.1 × 4.2 × 4.7 (with platform); 4.0 × 2.2 × 4.7 (without platform)
• Hopper capacity: 150 L
• Cell diameter: Ø20–80 mm
• Cell length: 40–120 mm (adjustable)
• Production capacity: Up to 34 000 cells/h (for 16-row)
• Power supply: 3×400 V, 50/60 Hz, 25 A
• Power requirement: 12 kW
• Compressed air consumption: 1420 L/min
• Air pressure: 6 bar
• Operating speed: max 1.7–2 s per cycle (dependent on tray/FiberCell)
• Automated placing into holders
• Communication module for remote access/backup
• Integrable into BCC sowing and cutting production lines
