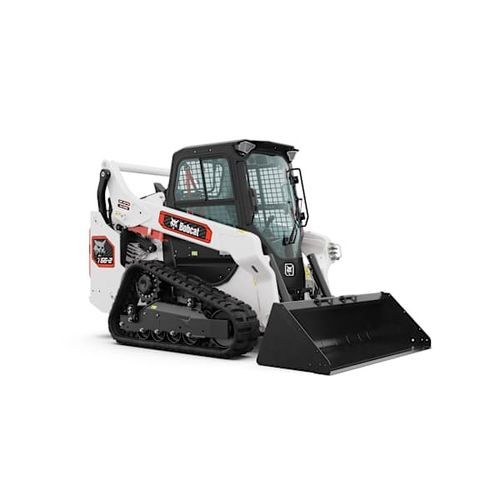

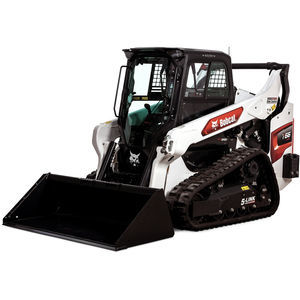

Crawler loader T66-2

compactwith cab

Overview
The T66-2 compact track loader focuses on improvements in uptime, comfort and control. It features a redesigned electrical system with relocated controllers and protected wiring harness routing for increased reliability; an 8-inch glove-friendly touchscreen that integrates live multi-camera views, split-screen monitoring, Bluetooth audio and hands-free calling; active noise-cancelling technology; and four selectable drive modes (Balanced, Agile, Dynamic, Charged) to tune driving characteristics for different tasks.

Key performance features

• Torsion suspension undercarriage (optional) providing improved durability, reduced maintenance and faster track cleanout while minimizing noise and vibration.
• Improved hydraulic performance through engineered pumps and an optimized hydraulic system to work faster and lift more.
• Superior lift arms: cast-steel lift arm sections and optimized lift-arm linkage for strong lifting capability and reduced side-to-side movement.
• Automatic ride control to reduce material spillage and provide a smoother ride across rough terrain.
• Two-speed travel option to boost top travel speed and reduce travel time across jobsites.
• Remote control operation available for machines equipped with Selectable Joystick Controls (SJC), enabling operation from outside the cab.

Cab, controls and operator experience

• Selectable Joystick Controls (SJC) — low-effort joysticks with fingertip switches for better tactile control of loader and attachments.
• 8-inch color touchscreen display — high-resolution, glove-friendly, rugged display with multi-camera integration, infotainment and active noise-cancelling.
• Customizable operator profiles — save up to 20 unique profiles with personalized languages and layouts; password protection for advanced features for fleet safety.
• Refined interior with ergonomic storage, phone holder and USB / USB-C connectivity.
• Sound-dampening features to maintain a quieter cab on busy jobsites.
• Clear visibility and open sightlines with optional clear-side enclosure (polycarbonate windows) to maximize side visibility.
• Maximum headroom and legroom, large swing-open door with lowered threshold; door removable without tools.
• Hydraulically cushioned cylinders: lift and tilt cylinders cushioned at full positions to reduce noise and increase comfort.
• Optional heated air-ride seat with air suspension and operator-controlled heat for added comfort.

Serviceability and uptime

• Hydraulic oil sight gauge located inside the fill door to protect it from debris and allow quick visual checks.
• Panoramic serviceability — easy access to engine checks, fills, filters and battery; most service items accessible without raising the lift arm.
• Protected battery under the cab with a remote jumpstart terminal in the engine compartment for easy charging/jumpstarts.
• Tip-up cab for full access during maintenance and repairs.
• Grease point access on critical pivot points for faster, easier greasing.
• Redesigned electrical system: relocated critical controllers and grounds, flexible wrapped wiring harness, sealed fuse boxes and optimized routing to reduce downtime and improve reliability.
• Enhanced durability features and factory-installed frame seals to block dirt and debris, simplifying clean-outs.
• Improved engine uptime via fuel system features (tank vent filter, fuel filter pressure sensor, improved fuel recirculation valve).
• Simple machine tie-downs for easy, secure transport.

Environmental and fuel compatibility
HVO ready: the T66-2 is compatible with HVO biofuel as a cleaner alternative to conventional diesel, offering potential environmental benefits.

Attachment versatility

• Standard Bob-Tach® mounting system for fast attachment changes.
• Attachment Control Kit with a compact seven-pin harness for integrated power and fingertip control functions.
• Wide dealer-supported attachment ecosystem for tasks such as grading, leveling, digging, lifting and cleanup.

Technical specifications

• Tipping load: 3175 kg
• Engine power: 55 kW
• Operating weight: 4000 kg
• Display: 8-inch color touchscreen (glove-friendly, high-resolution)
• Selectable drive modes: Balanced, Agile, Dynamic, Charged (4 modes)
• Optional features: torsion suspension undercarriage, automatic ride control, two-speed travel, remote control operation, heated air-ride seat, clear-side enclosure
• Attachment mounting: Bob-Tach®
• Fuel compatibility: HVO ready
