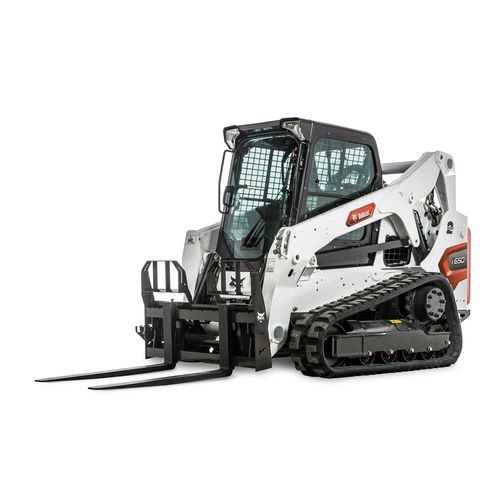

Crawler loader T650

compactwith cabvertical

Overview
The Bobcat T650 pairs a 55 kW (74 HP) Stage V engine with a compact tracked undercarriage to operate in confined or soft‑surface jobsites. Its vertical‑lift boom increases reach and truck‑loading capability while optional High Flow hydraulics support power‑demanding attachments. A pressurized, ergonomic cab and ground‑level service points simplify daily use and maintenance.

Key features

• Engine: 55 kW (74 HP), Stage V Bobcat engine (no AdBlue required) for consistent power.
• Lift system: Vertical‑lift boom for higher reach and improved truck loading.
• Rated Operating Capacity (ROC): 1192 kg; tipping load: 3405 kg; operating weight: 4190 kg.
• Hydraulics: Optional High Flow auxiliary hydraulics up to 115.5 l/min for heavy hydraulic attachments.
• Maneuverability: Compact footprint, zero‑turn capability and low ground pressure from tracked undercarriage.
• Travel: 2‑speed travel with top speed up to 14 km/h for fast site transfers.
• Cab: Pressurized ergonomic cab with climate control, forward‑positioned cab for improved visibility, supportive textile seat with mounted joysticks and optional Selectable Joystick Controls (SJC).
• Safety & lighting: Standard LED work lights and optional rear camera for low‑light operation.
• Attachment interface: Bob‑Tach quick‑attach system and auxiliary couplers for wide attachment compatibility.
• Serviceability & telematics: Ground‑level daily checkpoints, grease points and built‑in Machine IQ telematics for remote fleet monitoring and maintenance planning.

Performance highlights
Designed for higher lift and strong breakout force, the T650 offers reliable cooling and a protected frame to maximize uptime in demanding environments.

Applications

• Truck loading and pallet handling (vertical‑lift boom).
• Landscaping, grading and site preparation with buckets, box blades and graders.
• Forestry and land clearing using mulchers, stump grinders and forestry cutters (High Flow recommended).
• Beach cleaning, municipal sweeping and snow removal with specialized attachments.

Specifications

• Model: T650
• Engine power: 55 kW (74 HP), Stage V
• Rated operating capacity (ROC): 1192 kg
• Tipping load: 3405 kg
• Operating weight: 4190 kg
• High Flow auxiliary hydraulics (option): 115.5 l/min
• Travel speed: up to 14 km/h (2‑speed)
• Lift path: Vertical‑lift boom
• Cab: Pressurized, climate control, LED work lights, backup camera
• Attachment interface: Bob‑Tach, auxiliary couplers
• Telematics: Machine IQ built‑in
