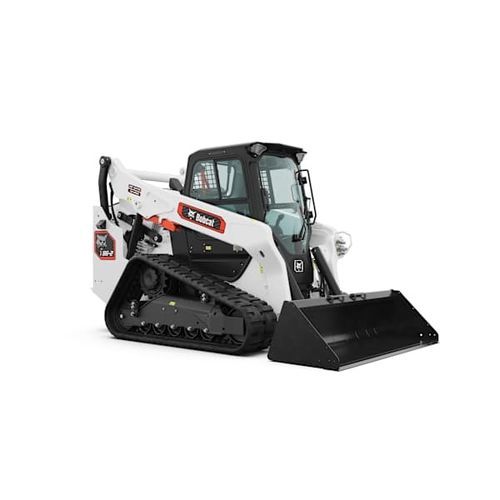

Crawler loader T86-2

compactwith cab

Overview
The T86-2 compact track loader delivers increased lift reach and engine power for demanding site work. Powered at 85.8 kW (115 HP) and offering a lift height of approximately 12 ft (≈3.65 m), it is engineered to speed up loading of tall trucks and stacking materials at greater heights while maintaining jobsite reliability.

Series
R-Series

Key features

• Engine power: 85.8 kW (115 HP)
• Lift height capability: ≈12 ft (≈3.65 m)
• Four selectable drive modes for task-specific response
• Advanced 8-inch automotive-grade touchscreen display
• Reinforced lift arms designed for heavy-duty attachment use
• Upgraded electrical routing and sealed components for improved uptime
• Optional SuperFlow auxiliary circuit: up to 159 l/min for high-flow implements

Performance highlights

• Tipping load: 5,087 kg
• Operating weight: 5,481 kg
• Designed to improve cycle speed when loading tall trucks or stacking at height

Hydraulics & drivetrain

• Optional SuperFlow hydraulics (up to 159 l/min) and high-pressure capability for heavy implements
• Two lift-path options: vertical and radial (application-dependent)
• Two-speed travel option to increase transport speed between sites
• Selectable Joystick Controls (SJC) and customizable operator profiles (up to 20)

Operator controls & comfort

• 8-inch color touchscreen with multi-camera views and split-screen capability
• Low-effort joysticks with fingertip switches
• Optional heated, air-suspended seat and enhanced cabin sound reduction
• Four drive modes (Balanced, Agile, Dynamic, Charged) to tune machine behavior

Maintenance & reliability

• Improved electrical architecture with sealed fuse boxes and optimized harness routing
• Protected hydraulic oil sight gauge and panoramic access to routine service points
• Battery housed under cab with cab-tilt access for serviceability
• Enhanced cooling and debris sealing for extended operation in harsh conditions

Versatility & attachments

• Compatibility with Bob-Tach system and wide range of Bobcat attachments
• Power Bob-Tach option for in-cab attachment locking/unlocking
• Ready for HVO fuel use where permitted
• Optional remote-control capability for models equipped with SJC

Technical specifications

• Model: T86-2
• Series: R-Series
• Engine power: 85.8 kW (115 HP)
• Lift height (max): ≈12 ft (≈3.65 m)
• Tipping load: 5,087 kg
• Operating weight: 5,481 kg
• Auxiliary flow (SuperFlow option): up to 159 l/min
• Drive modes: 4 selectable modes
• Display: 8-inch touchscreen (automotive-grade)
• Operator profiles: up to 20
