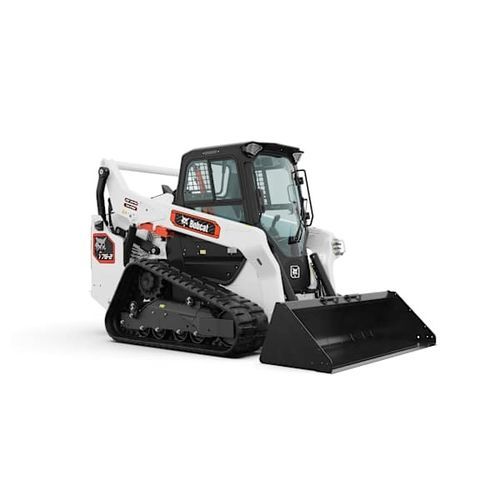

Crawler loader T76-2

compactwith cab

Overview
Built for harsh jobsite conditions, the T76-2 compact track loader integrates practical updates to protect components and simplify daily operation and maintenance. The electrical system has been redesigned, factory-installed frame seals protect the engine bay, and hydraulic sight gauges and hose routing have been relocated and shielded for easier checks and longer component life.

Key features

• Torsion-suspension undercarriage (optional) for improved durability, reduced vibration and easier track cleanout
• Enhanced hydraulic performance: optimized engine, pumps and hydraulic system for maximum productivity
• Superior lift arms with two lift-path options (vertical and radius) and patented single-plane design to minimize lateral movement
• Cast-steel lift-arm sections and optimized linkage for high lifting capability
• Automatic ride control to reduce material spillage and improve operator comfort
• Two-speed travel option to increase transit speed between work areas
• Remote operation capability with Selectable Joystick Control (SJC) and portable remote-control system
• Intuitive controls including Selectable Joystick Controls (SJC) with fingertip switches
• 8-inch glove-friendly color touchscreen: multi-camera live views, split-screen, Bluetooth audio and hands-free calling, active noise cancellation
• Customizable operator profiles: up to 20 profiles and support for 30 languages; password protection for advanced features
• Redesigned engine and fuel-system improvements for easier cold-starting and simplified routine maintenance
• Dual-direction bucket positioning for consistent load angle and reduced spilling
• HVO-ready for use with HVO biofuel
• Four selectable drive modes (Balanced, Agile, Dynamic, Charged) to tailor machine response
• Serviceability improvements: hydraulic sight gauge inside fill door, panoramic access to engine checks/filters/battery, protected battery with remote jumpstart, tip-up cab and easy grease-point access
• Uptime protection: relocated controllers, wrapped wiring harness, factory-installed seals and improved cooling
• Attachment versatility: standard Bob-Tach® mounting system; supports attachment control kits and a wide range of attachments

Key specifications (table)
Tipping load: 4050 kg
Engine power: 55 kW
Operating weight: 4565 kg
Rated operating capacity: 1417 kg

Notes

• Premium cab includes 8-inch touchscreen, up to 20 operator profiles and support for 30 languages.
• Four selectable drive modes allow tuning of machine response to operator skill and jobsite needs.
• Design emphasizes serviceability and uptime: sealed fuse boxes, protected wiring routing, factory-installed frame seals and simplified daily checks.

Technical specifications

• Brand: Bobcat
• Model: T76-2
• Tipping load: 4050 kg
• Engine power: 55 kW
• Operating weight: 4565 kg
• Rated operating capacity: 1417 kg
• Cab: 8-inch color touchscreen, multi-camera views, Bluetooth audio, active noise cancellation
• Operator profiles: up to 20; multi-language support (30 languages)
• Drive modes: Balanced, Agile, Dynamic, Charged
• Undercarriage: optional torsion-suspension
• Fuel compatibility: HVO-ready
• Service features: hydraulic sight gauge inside fill door, panoramic service access, protected battery with remote jumpstart, tip-up cab, easy grease access
• Uptime features: redesigned electrical system, factory-installed frame seals, improved cooling
• Attachment system: Bob-Tach® standard; supports attachment control kit and wide attachment range
