Elbow irrigation fitting 0400121.050312

barbedthreadedpolypropylene

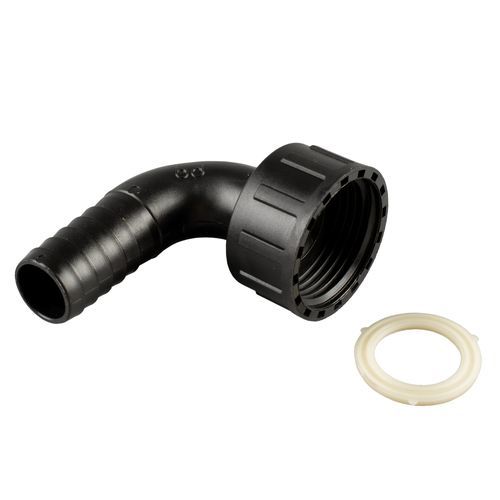

90° elbow female hose barb in black polypropylene designed for hose-to-thread connections. It features one hose-barb end sized for DN hoses and one female end with a G-threaded rotating ring nut; supplied with one flat EPDM gasket.

Available variants:

• Code 0400121.050312 — G: 1/2"; DN mm(inch): 12 (15/32"); D: 7; H: 50; H1: 59; L(a): 30; E: 27.5; L(1): 10.5
• Code 0400121.050512 — G: 3/4"; DN mm(inch): 12 (15/32"); D: 7; H: 50; H1: 61; L(a): 30; E: 33; L(1): 11.5
• Code 0400121.050516 — G: 3/4"; DN mm(inch): 16 (5/8"); D: 11; H: 48; H1: 61; L(a): 30; E: 33; L(1): 7
• Code 0400121.050519 — G: 3/4"; DN mm(inch): 19 (3/4"); D: 15.5; H: 48; H1: 61; L(a): 30; E: 33; L(1): 11.5

Usage / functions

• 90° elbow for connecting hoses to female threaded fittings
• Rotating G-thread ring nut enables orientable connection
• Hose-barb end sized for insertion on the specified nominal diameter (DN)
• Flat EPDM gasket ensures sealing between the threaded joint and the body

Characteristics / technical specifications

• Material: black polypropylene (plastic)
• Sealing: one flat EPDM gasket included
• Connections: hose-barb for DN hose and female G-threaded rotating ring nut
• Angle: 90° elbow, female
• Series / product line: Line 4000 - Outdoor & Gardening
• Variant codes: 0400121.050312, 0400121.050512, 0400121.050516, 0400121.050519 (see variants for detailed dimensions)
