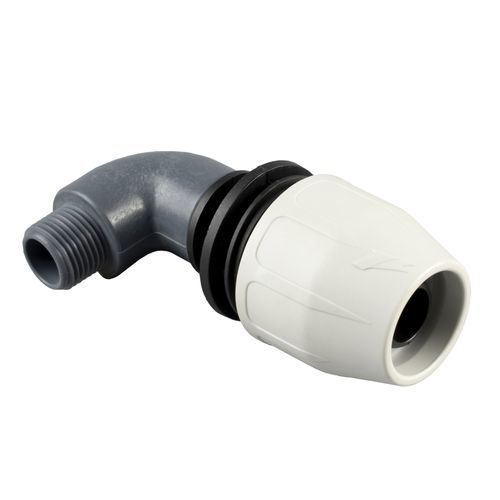

Elbow irrigation fitting BDFast® COMPACT

threadedpolypropylenePP

BDFast® Compact is a 90° elbow male fitting injection-moulded in polypropylene, designed to connect a DN hose on one end and a male G1 threaded connection on the other. It is offered in multiple DN/G1 size variants to suit different hose diameters and thread sizes, with compact dimensions suitable for installations where space is limited.

Variants / available codes and dimensions:

• Code 0102537.050313 — DN 13 (1/2"), G1 1/2", D 9.5 mm, E 38 mm, E1 29 mm, L 16 mm, H 43 mm, H1 32 mm
• Code 0102537.050316 — DN 16 (5/8"), G1 1/2", D 12 mm, E 42 mm, E1 29 mm, L 16 mm, H 43 mm, H1 34 mm
• Code 0102537.050320 — DN 20 (25/32"), G1 1/2", D 15 mm, E 49 mm, E1 29 mm, L 16 mm, H 43 mm, H1 38 mm
• Code 0102537.050513 — DN 13 (1/2"), G1 3/4", D 9.5 mm, E 38 mm, E1 35 mm, L 19 mm, H 50.5 mm, H1 33 mm
• Code 0102537.050516 — DN 16 (5/8"), G1 3/4", D 12 mm, E 42 mm, E1 35 mm, L 19 mm, H 50.5 mm, H1 35 mm
• Code 0102537.050520 — DN 20 (25/32"), G1 3/4", D 15 mm, E 49 mm, E1 35 mm, L 19 mm, H 50.5 mm, H1 38 mm

Characteristics / technical specifications:

• Series / family: BDFast® Compact (Line 1000 - The Innovations)
• Material: polypropylene (PP)
• Type: 90° elbow, male fitting
• Connections: one end for DN hose (various DN / mm sizes), opposite end male G1 thread (available 1/2" or 3/4" depending on variant)
• Compact overall dimensions (variant-dependent: L from 16 to 19 mm; H approx. 43–50.5 mm)
• Multiple product codes cover the range of DN and G1 combinations (see variants list)
