Elbow irrigation fitting 0400315.050303

polypropylene

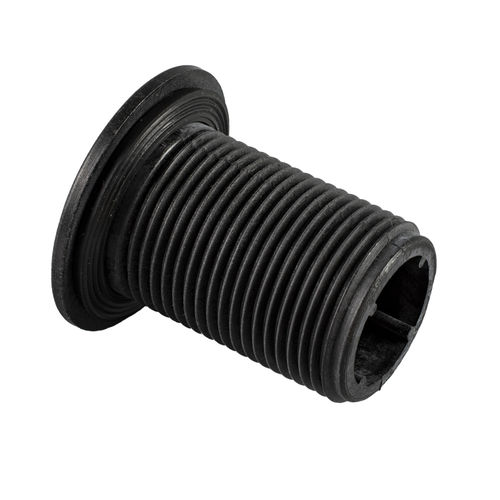

Product overviewBulkhead made of black polypropylene with one flat end and one end with male G1 thread - component of items 0400312 and 0400318 .One end designed for DN hose; the other end with a G threaded rotating ring nut and a seat for a flat gasket.Designed for water connections on washing machines and similar appliances.3D Models / Datasheet3D models and downloadable archive available: files/0200136.zipAdditional informationIntended use: washing machines and similar appliance connections.Design: 90° elbow with rotating ring nut; provision for flat gasket.Installation note: respect maximum tightening torques published by Bucchi (see product page torque image).Technical specificationsMaterial: Polyamide (nylon 66) PA.Color: Natural (white).Connectivity: Terminations for mobile ring threaded GAS cylindrical ISO 228/1; hose connector DN.Variant / Dimensions: Code 0200136.000511 — G: 3/4" — DN: 11 mm (7/16") — D: 7 mm — H: 27 mm — H1: 65 mm — L(a): 22 mm — E: 23.5 mm.Application: fittings for washing machines.
