Control valve 0800140.060316
regulatingmanualpolypropylene

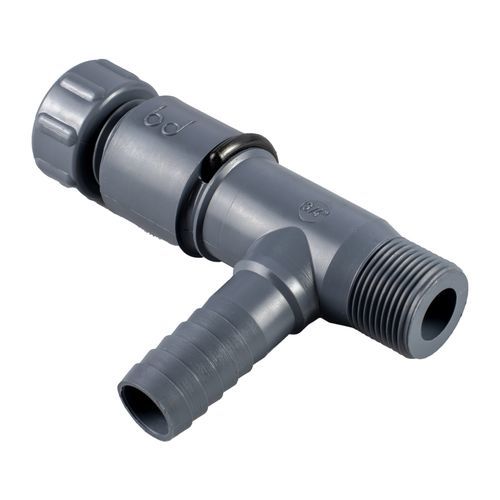

Control valve - 0800140.060316 - Bucchi S.r.l - regulating / manual / polypropylene
Control valve - 0800140.060316 - Bucchi S.r.l - regulating / manual / polypropylene
Control valve - 0800140.060316 - Bucchi S.r.l - regulating / manual / polypropylene - image - 2
Add to favorites
Compare this product

Characteristics

Function
for control, regulating
Operation
manual
Material
polypropylene
Other characteristic
threaded, 2-way, barbed
DN

16 mm, 20 mm
(0.63 in, 0.787 in)

Description

Description

  • Needle valve for hose-to-thread connections, full bore design for minimal flow restriction; suitable for DN hoses and G1 male threaded ports (ISO 228/1).
  • Material: glass-fibre reinforced dark gray polypropylene; seal: NBR O-ring.
  • Operating pressure: 6 bar at 20°C; maximum temperature: 80°C.


Available variants

  • 0800140.060316 — G1: 1/2"; DN: 16 (5/8"); D: 10.5; H: 84; H1: 125; L(a): 32.5; E: 38; L: 18
  • 0800140.060520 — G1: 3/4"; DN: 20 (25/32"); D: 15; H: 84; H1: 125; L(a): 32.5; E: 38; L: 18


Technical specifications

  • Thread standard: G (cylindrical) ISO 228/1. Bucchi applies a slight internal taper to the thread to improve hydraulic sealing; sealing achieved by light tightening (see recommended tightening torques).
  • Connection type: hose tail for DN hoses and G1 male threaded end.
  • Full bore: flow passage corresponds to internal tube diameter.
  • Color: dark gray (RAL 7015).


Documentation / images

  • 3D drawings and technical documentation available for download (data package - ZIP).
  • Product images: https://bucchi.ordersender.biz/scripts/imgresize.php?pic=immagini/articoli/0800140.jpg&q=100&h=1200&w=1200 and https://bucchi.ordersender.biz/scripts/imgresize.php?pic=immagini/articoli/0800140A.jpg&q=100&h=1200&w=1200
