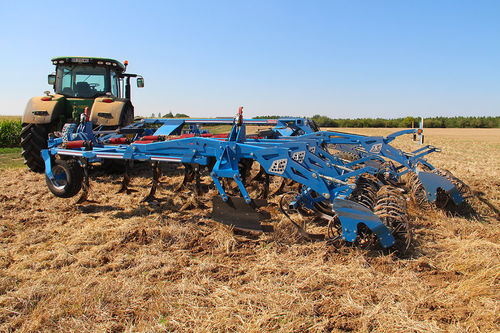

Towed stubble cultivator ONATAR

with rollerfoldingfixed

A strong frame with 3 or 4 tines row, designed to receive our mechanical non stop tine OLLADRA The ONATAR allows a good versatility working in The sapce between each beam and each tine make easy the evacuation of plant debris and earth flow. Tine is maintained by a notch to keep its position The ONATAR provides a disengagement under chassis to limit jamming risks whatever quantity of residues. Frame •Coupling on lift arm with anti-rotation pin n°3/4 – •Spacing n°3/4 •Beam articulation 120x80x80 •4 suare beams of 100 for tines – center distance 900 mm •Hydraulic folding to 3 m in 3 sections with twin safety •mechanism with both hydraulic and mechanical locking (transport and work) •Pair of single depth control wheels 5 m – Double 6,7 &, 8 m, 10.75 x 15/10 Ø 760 Pair of wheels 22.5″ – 16 ply, track 1.80m : 550/145 R225 Flotation 648 16 TL •Levellers at the rear of the last row of tines •Hydraulic braking as standard •Road light and signals included
