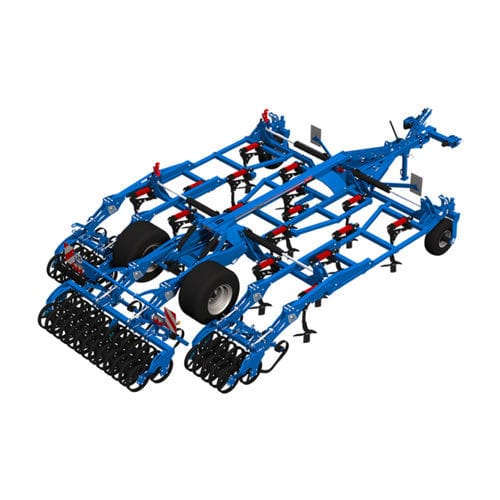

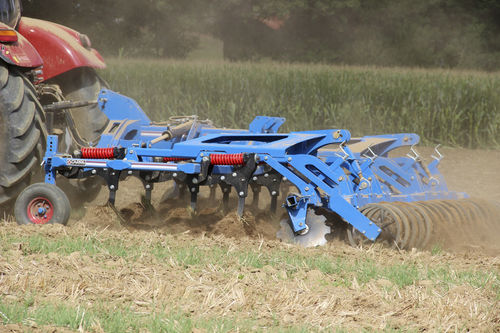

Towed stubble cultivator ONATAR NEO

foldingfixedwith hydraulic adjustment

A strong frame with 3 or 4 tines row, designed to receive our mechanical non stop tine OLLADRA The ONATAR allows a good versatility working in The sapce between each beam and each tine make easy the evacuation of plant debris and earth flow. Tine is maintained by a notch to keep its position The ONATAR provides a disengagement under chassis to limit jamming risks whatever quantity of residues. Frame •3 point linkage between clevis N°3 – Pin N° 2/3 •Main beam 180x100x10 •3 beams square tine 100mm for tines – Inter-beam spacing 720mm •Hydraulically folds to 3 m in 3 sections with a double safety and locking mechanism (transport and work) •Road light and signals included WELL FINISHED WORK The working depth is controlled entirely by the rear equipment and the front depth wheels. This keeps the machine stable and the working depth constant, even at high speeds. Working depth range of the tine: 5 to 30 cm. For a good finish, choose the rear roller of your choice (see the equipment page). OLLADRA Double spring non stop tine with point 120 twisted leg + mouldboard 100 twist + wing L/R 300mm DENT ONATAR NEO Dent sécurité boulon Soc pointe 120mm + mouldboard 100 twist + wing L/R 300mm 2 TYPES OF PLOUGHSHARES Version soc 80 + versoir 80 80 mm pointed coulter + 80 mm mouldboard Deep loosening, good mixing intensity Version soc 60 réversible 60mm reversible ploughshare Deep loosening, very low mixing intensity
