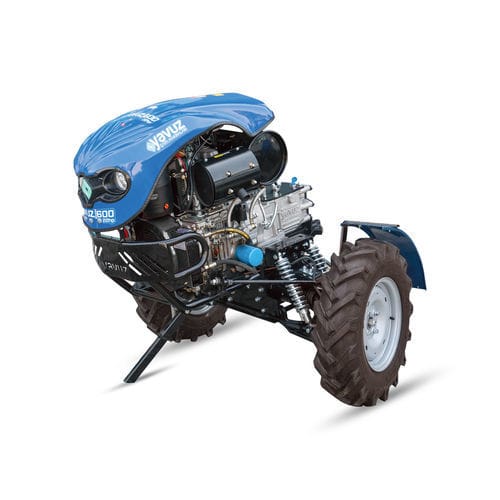

Diesel rototiller 600 292F

Overview
Compact agricultural tractor Yavuz 600 equipped with Yavuz 292F engine. Designed for small-scale farming and multifunctional field tasks, this model pairs a simple, robust transmission with a diesel engine delivering 22 HP.

Key features

• Serial No: Yavuz 600 Yavuz 292F
• Gearbox: 3 forward and 1 reverse speed
• 4x4 drive with shock absorber disk resistance
• Two upper and two lower power take-offs (PTO)
• Dry type conical clutch with brake lining

Engine & performance

• Engine: Yavuz 292F
• Engine type: Double cylinder, four-stroke, fuel injection
• Starting system: Electrical start
• Cylinder volume: 997 cm3
• Power and speed: 22 HP / 3600 rpm
• Effective torque: 32.8 at 1,800 rpm
• Engine oil capacity: 2.75 lt
• Fuel type and capacity: Diesel, 15 lt tank
• Cooling and filtration: Air-oil cooling with oil-bath air filter

Transmission & PTO

• Transmission: Conical and bevel gear
• Gearbox: 3 forward and 1 reverse
• Power take-off: Two upper and two lower PTO outputs for implements
• Clutch: Dry type conical brake lining for positive engagement

Dimensions & weight

• Wheels: 650 x 80 x 13
• Weight: 350 kg

Safety & maintenance

• Safety system: Emergency engine stop system
• Maintenance: accessible service points and straightforward mechanical layout for field repairs
