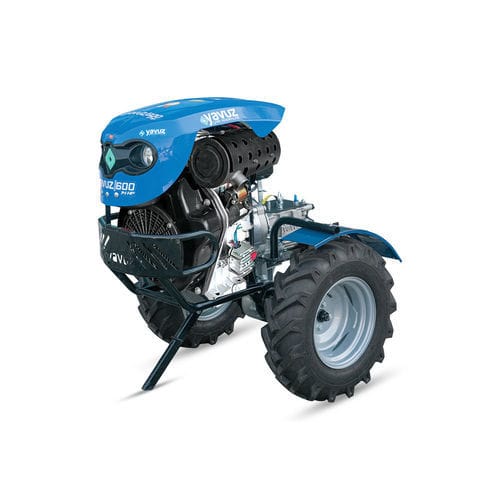

Diesel rototiller Y 600

Product
Walking tractor Yavuz Y 600 14HP with 3 forward and 1 reverse gearbox, single-cylinder diesel engine for field and general light agricultural tasks.

Technical data
Serial No: Yavuz Y 600 14HP
Gearbox: 3 forward and 1 reverse speed
Transmission: Conical and bevel gear transmission
Safety system: Emergency engine stop system
Power take-off: Two upper PTO and two lower PTOs
Clutch: Dry type conical brake lining
Wheels: 650x80x13
Engine: Y 600 14HP
Engine type: 4-stroke with direct injection
Configuration: Single-cylinder
Starting system: Rope / recoil / electric start
Cylinder volume (cm3): 660 cm3
Power and rotation: 14 HP / 3000 rpm
Effective torque: 5 @ 1600 rpm
Engine oil capacity (L): 2.6 L
Fuel tank capacity (L): 7.2 L
Fuel type: Diesel
Air filter: Oil-bath type
Cooling system: Fan-assisted air cooling
Weight: 210 kg

Specifications

• Serial No: Yavuz Y 600 14HP
• Gearbox: 3 forward and 1 reverse speed
• Transmission: Conical and bevel gear transmission
• Safety system: Emergency engine stop system
• Power take-off: Two upper PTO and two lower PTOs
• Clutch: Dry type conical brake lining
• Wheels: 650x80x13
• Engine: Y 600 14HP
• Engine type: 4-stroke with direct injection
• Configuration: Single-cylinder
• Starting system: Rope / recoil / electric start
• Cylinder volume (cm3): 660 cm3
• Power and rotation: 14 HP / 3000 rpm
• Effective torque: 5 @ 1600 rpm
• Engine oil capacity (L): 2.6 L
• Fuel tank capacity (L): 7.2 L
• Fuel type: Diesel
• Air filter: Oil-bath type
• Cooling system: Fan-assisted air cooling
• Weight: 210 kg
