Diesel rototiller 600 ANTOR 4LD 820

Product

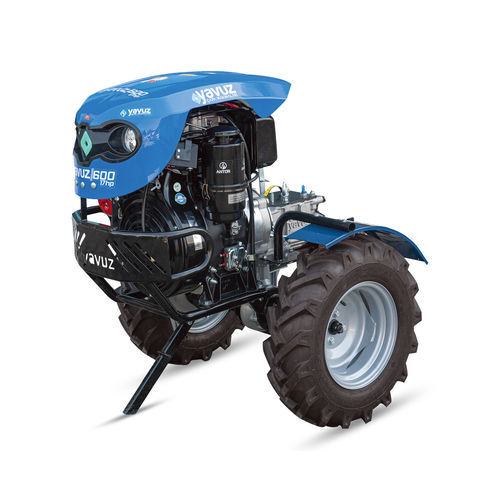

Two-wheel tractor Yavuz 600 ANTOR 4LD 820 equipped with a single-cylinder 4-stroke diesel engine and a 3 forward / 1 reverse gearbox, for agricultural and utility tasks.

Overview
Three forward gears and one reverse gear. Conical and bevel gear transmission. Emergency engine stop safety system. Two upper and two lower power take-offs. Dry-type conical brake-lining clutch. Wheels 650x80x13. ANTOR 4LD 820 single-cylinder, 4-stroke direct-injection diesel engine with electric start.

Technical Table
Serial No : Yavuz 600 ANTOR 4LD 820
Gear Box : 3 Forward and 1 Reverse Speed
Transmission : Conical and Bevel Gear Transmission
Safety System : Emergency Engine Stop System
Power Take-off : Two Upper and Two Lower Power Take-offs
Clutch : Dry Type Conical Brake Lining
Wheels : 650x80x13
Engine : ANTOR 4LD 820
Engine Type : Single-cylinder, 4-stroke, direct injection
Starting System : Electrical start
Cylinder Volume (cm3) : 817 cm3
Power and Rotation : 17 HP / 3000 rpm
Effective Torque : 5 @ 1600 rpm
Engine oil capacity (l) : 2.6 l
Fuel tank capacity (l) : 7.2 l
Fuel Type : Diesel
Air Filter : Oil-bath type
Cooling System : Forced-air cooling
Weight : 210 kg

Features / Technical specifications

• Serial No: Yavuz 600 ANTOR 4LD 820
• Gear Box: 3 Forward and 1 Reverse Speed
• Transmission: Conical and Bevel Gear Transmission
• Safety System: Emergency Engine Stop System
• Power Take-off: Two Upper and Two Lower Power Take-offs
• Clutch: Dry Type Conical Brake Lining
• Wheels: 650x80x13
• Engine: ANTOR 4LD 820
• Engine Type: Single-cylinder, 4-stroke, direct injection
• Starting System: Electrical start
• Cylinder Volume: 817 cm3
• Power and Rotation: 17 HP / 3000 rpm
• Effective Torque: 5 @ 1600 rpm
• Engine oil capacity: 2.6 l
• Fuel tank capacity: 7.2 l
• Fuel Type: Diesel
• Air Filter: Oil-bath type
• Cooling System: Forced-air cooling
• Weight: 210 kg
