Diesel rototiller 600 ANTOR 4LD 820

Product

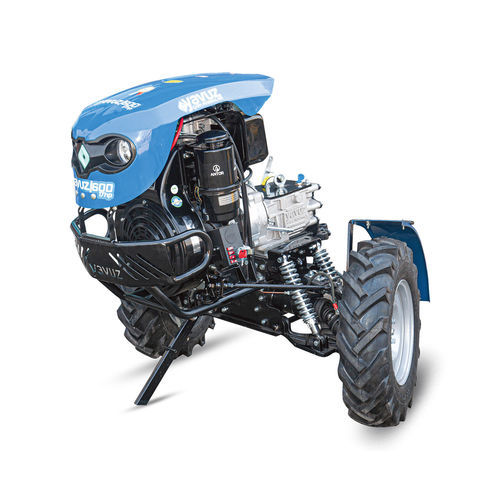

The Yavuz 600 ANTOR 4LD 820 is a walking tractor designed for versatile agricultural tasks including tilling, transport and powering PTO-driven implements. It integrates a single-cylinder 4-stroke ANTOR 4LD 820 diesel engine with multiple start options for reliable field use.

Technical table
Serial No: Yavuz 600 ANTOR 4LD 820
Gearbox: 3 forward and 1 reverse speed; conical and bevel gear transmission
Safety system: Emergency engine stop system
Power take-off (PTO): Upper and lower PTOs (two each)
Clutch: Dry-type conical brake lining
Wheels: 650x80x13; 4x4 with shock absorber disk resistance
Engine: ANTOR 4LD 820, single-cylinder, 4-stroke with direct injection
Starting system: Rope / recoil / electrical start
Cylinder volume: 817 cm3
Power and rotation: 17 HP / 3000 rpm
Effective torque: 5 @ 1600 rpm
Engine oil capacity: 2.6 L
Fuel tank capacity: 7.2 L
Fuel type: Diesel
Air filter: Oil-bath type
Cooling system: Air-pressurized (forced air) cooling
Weight: 380 kg

Features / Technical specifications

• Serial No: Yavuz 600 ANTOR 4LD 820
• Gearbox: 3 forward and 1 reverse speed with conical and bevel gear transmission for torque transfer
• Safety system: Emergency engine stop for operator safety
• PTO: Two upper and two lower power take-off outputs to drive a variety of implements
• Clutch: Dry-type conical brake lining for reliable engagement
• Wheels: 650x80x13, 4x4 configuration with shock absorber disk resistance for traction and durability
• Engine: ANTOR 4LD 820, single-cylinder 4-stroke direct injection diesel
• Starting: Rope, recoil or electrical start options for flexible operation
• Cylinder volume: 817 cm3
• Power: 17 HP at 3000 rpm
• Effective torque: 5 @ 1600 rpm
• Lubrication & capacities: Engine oil 2.6 L; fuel tank 7.2 L
• Air filter: Oil-bath type for prolonged engine protection in dusty conditions
• Cooling: Air-pressurized system for consistent temperature control
• Weight: 380 kg (transport and mounting reference)
