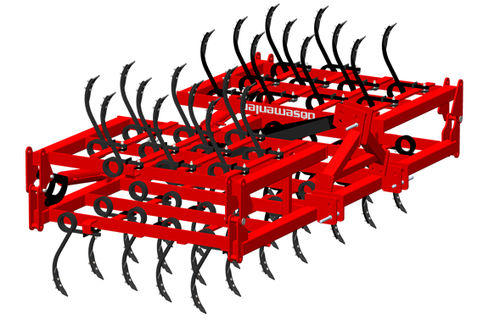

Mounted field cultivator YK4-17

folding

- The tines can be used with or without support tines. - You can adjust the distance between the tines individually for different processes. - The rotating rakes crumble tiny clumps in the soil. - As the wings can be fully folded over the main frame, the machine can be safely and conveniently transported on the road and needs a narrow place for storage. - This machine provides a good seed bed with a minimum at costs. - Can also be used with low HP tractors. - You can adjust the distance between the tines individually for different processes. - Low maintenance and service costs. Model Specifications: - YK4-17: 17 tines, 1.80 m working width, 455 kg, 45-55 HP required - YK4-19: 19 tines, 2.10 m working width, 520 kg, 35-45 HP required - YK4-21: 21 tines, 2.30 m working width, 545 kg, 55-65 HP required - YK4-23: 23 tines, 2.40 m working width, 570 kg, 60-70 HP required - YK4-25: 25 tines, 2.55 m working width, 610 kg, 65-80 HP required - YK4-27: 27 tines, 2.70 m working width, 640 kg, 75-85 HP required - YK4-29: 29 tines, 3.10 m working width, 670 kg, 80-90 HP required - KYK4-35: 35 tines, 3.80 m working width, 1055 kg, 90-100 HP required - KYK-39: 39 tines, 4.30 m working width, 1190 kg, 100-110 HP required - KYK4-43: 43 tines, 4.70 m working width, 1225 kg, 110-120 HP required - KYK4-47: 47 tines, 5.10 m working width, 1250 kg, 120-130 HP required - KYK4-51: 51 tines, 5.50 m working width, 1400 kg, 130-140 HP required - KYK4-55: 55 tines, 5.90 m working width, 1455 kg, 140-150 HP required - KYK4-61: 61 tines, 6.10 m working width, 1560 kg, 150-160 HP required
