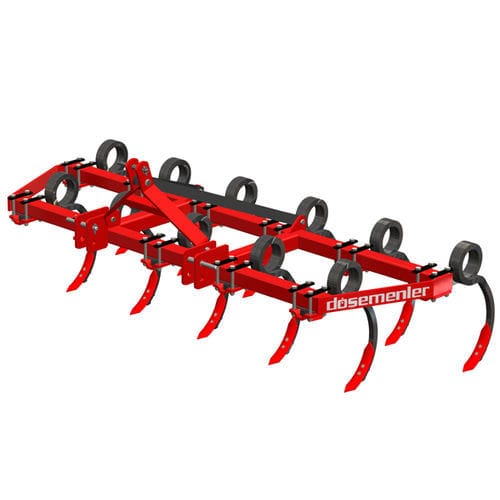

5-rows strip-tiller ATL-2-09

6-rows

- Best stubble process with 30x30 square spring tines. - Due to the low frame it can be easily used for soil preparation between tree rows like olive trees. - Spring tines don’t damage tree roots. - Can also be used with low HP tractors. - Adjustable rotating rake combination tears the clumps in the soil to pieces and press the soil, so the soil protects its humidity. - Optionally you can use it with a spring rake combination. - With lower HP need there are careful use of fuel and time. - You can adjust the distance between the tines individually for different processes. - Low maintenance and service costs. MODEL | NUMBER OF TINE | WORKING WIDTH | WEIGHT | REQUIRED HP --- | --- | --- | --- | --- ATL-2-09 | 9 | 2.15 m | 285 KG | 30-35 HP ATL-2-11 | 11 | 2.65 m | 345 KG | 35-45 HP ATL-2-13 | 13 | 3.15 m | 395 KG | 45-65 HP ATL-2-15 | 15 | 3.65 m | 430 KG | 65-80 HP ATL-3-13 | 13 | 2.55 m | 470 KG | 65-80 HP ATL-3-15 | 15 | 2.95 m | 505 KG | 80-90 HP ATL-3-17 | 17 | 3.35 m | 600 KG | 90-95 HP ATL-19 | 19 | 3.75 m | 710 KG | 100-110 HP KATL-19 | 19 | 3.60 m | 800 KG | 110-120 HP KATL-21 | 21 | 4.20 m | 845 KG | 120-130 HP KATL-23 | 23 | 4.55 m | 910 KG | 130-140 HP KATL-25 | 25 | 4.85 m | 1322 KG | 140-150 HP KATL-27 | 27 | 5.20 m | 1431 KG | 150-160 HP KATL-29 | 29 | 5.55 m | 1530 KG | 160-170 HP KATL-31 | 31 | 6.00 m | 1685 KG | 170-180 HP
