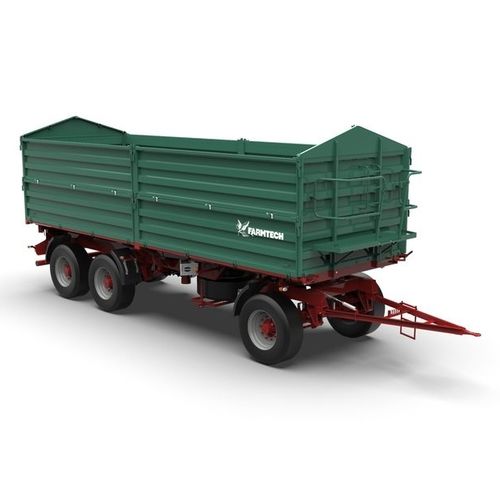

Dump trailer DDK 2400

tipping3-axleagricultural

A high-performance transport technology with high capacity, highest operating comfort and long working life is the basis of modern agriculture. The model DDK meets the highest demands in terms of quality, performance and features. The DDK tipper is especially suitable for long transport distances and convinces with extremely large load capacity, fast and easy loading and discharge, simple handling and maximum safety. HIGHLIGHTS CHASSIS Sturdy frame made from steel square tube 260 x 140 x 14,2 mm, trapezoidal tipping frame, parabolic springs, strong ball rim bearing 1100 mm, preparation for trailer coupling, underride guard with commercial LED road lighting system (EU) 2015/208, rear socket, wheel chocks AXLE Three heavy duty ADR-axles with 10-stud rims, track 1950 mm, axle load 12500 kg/axle, brake cam 406 x 120 mm BRAKES Hydraulic brake with a mechanical valve and ALB or dual-line airbrake system with ALB on all six wheels, continuous brake line for second trailer, separate parking brake TIPPING MECHANISM Ball tipping mounting with conical socket, two 5-stage hard-chromed telescoping cylinders, automatic stroke limiter, rear hydraulic connection for second trailer
