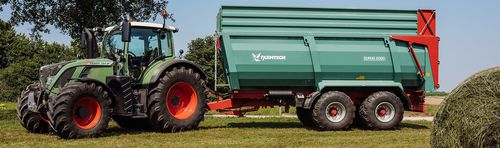

Dump trailer DURUS 2000

tipping2-axlegrain

The universal dump tipper Durus is perfect for transporting all agricultural goods, especially for silage, grain, wood chips and other loose bulk materials. The conical bridge ensures a very high elasticity of a rapid and complete emptying. Even heavy material such as sugar-beet, sand, gravel and mud are no hindrance for the Durus. The dump tipper is usable and guaranteed to work with highest thrift and offers maximum safety and efficiency through the entire year. HIGHLIGHTS CHASSIS Sturdy frame made from steel square tube 220 x 8 mm, tandem chassis with parabolic springs, low drawbar hitch with fix towing eye D40 mm, hydraulic Y-type parking jack, preparation for trailer coupling, underride guard with commercial LED road lighting system (12 V), rear socket, wheel chocks AXLE Two heavy duty ADR-axles with 10-stud rims, track 1950 mm, wheelbase 1525 mm, axle load 13500 kg/axle, brake cam 406 x 140 mm BRAKES Hydraulic brake with mechanical valve and ALB or dual-line airbrake system with ALB on all four wheels, separate parking brake TIPPING MECHANISM Ball tipping mounting with conical socket, 5-stage hard-chromed telescoping cylinder, automatic stroke limiter BODY Conical dumper body made of steel plate (4 mm floor and 4 mm walls), no weld seam (foil seam fusion), absolute smooth inner walls, hydraulic tailgate (with double-acting cylinders and hydraulic accumulator), grain release with lever, inspection window front, steel mud wings, access ladder according to accident prevention regulation (UVV)
