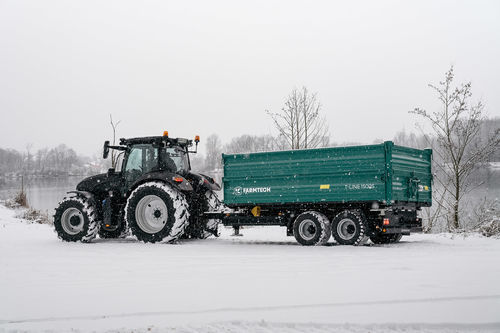

Tipping trailer T-LINE 1500S

tandem axleagricultural15 ton

Product overview
The T-Line 1500S is a tandem-axle tipping trailer engineered for agricultural transport of high payloads with minimal soil compaction. Designed for safe, efficient and versatile use across varied surfaces, it balances load capacity and manoeuvrability for everyday farm operations as well as heavier transport tasks.

Key facts

• Load capacity: 11.6 t
• Tractor power: > 91 HP
• Gross weight: 15 t
• Chassis: Tandem-axle (compact tandem-axle chassis for manoeuvrability, stability and safety)

Driving comfort
The compact tandem-axle chassis provides excellent manoeuvrability and stability during loading, unloading and transport. A low platform height, adjustable drawbar and powerful braking systems ensure secure handling and improved comfort for road and field use, including at higher speeds and on uneven ground.

Flexibility
A broad range of equipment and configuration options allows the T-Line to be adapted to specific agricultural tasks. The trailer supports three-sided tipping, quick-change sideboards and multiple hydraulic settings to meet differing loading and crop-handling requirements.

Technical specifications

• Permitted gross weight: 15 000 kg
• Weight without load (depends on config): 3 400 kg
• Max. payload: 11 600 kg
• Max. drawbar load: 2 000 kg
• Trailer total dimensions (L x W x H): 6380 x 2420 x 2300 mm
• Internal body dimensions (L x W): 4480 x 2150 / 2250 mm
• Ground clearance (standard tyres): 1100 mm
• Power requirements: > 68 kW / 91 HP
• Sidewall height: 600 + 600 mm
• Load volume: 11.8 m3
• Grain release with lever: 506 x 265 mm
• Floor thickness: 4 mm
• Steel sideboards and extension boards with quick shutters: standard
• Plugged corner stanchions: standard
• Side and rear sideboards oscillate downwards: standard
• Frame made from G-profile: 270 x 90 x 6 mm
• Chrome hydraulic cylinder: 4 levels
• Diameter for every level of hydraulic cylinder: 120 / 105 / 90 / 75 mm
• Maximum lift height of hydraulic cylinder: 1800 mm
• Valve for stroke limitation of hydraulic cylinder: standard
• Required amount of oil for hydraulic cylinder: 15 liters
• Three-sided tipping angle (side / backwards): 45° / 49°
• Electrical installation (after EU 2015/208) with LED technology: standard
