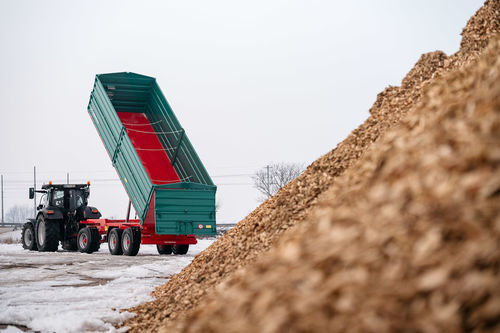

Tipping trailer D-LINE 2400

3-axleagricultural24 ton

Overview The D-Line is a new generation of tri-axle tipping trailers developed for modern agricultural operations with demanding requirements for performance, reliability and operator comfort. It is engineered for intensive use and efficient transport over long distances.

Type Tri-axle tipping trailer

Short description The D-Line is designed for straightforward operation, rapid loading and unloading, and reliable safety across operating conditions. Its versatility makes it suitable for transporting bulk materials, harvested crops and other agricultural loads.

Key Facts

• Max. payload: 17 t
• Power requirements: > 145 HP (approx. > 108 kW)
• Permitted gross weight: up to 24 t
• Usable volume: up to 40 m³ (models/variants)

Performance & volume With a maximum permissible gross weight of up to 24 tonnes and a usable volume of up to 40 m³, D-Line tipping trailers provide a balanced ratio between payload and load volume. The design and component layout support durable operation as well as stable and safe driving, even at full load.

Ease of operation The D-Line offers simple controls for fast and efficient loading and unloading and maintains safety in varied operating conditions. Its adaptable configuration covers a wide range of agricultural transport tasks.

Technical data (summary) Permitted gross weight [kg]: 24000
Weight without load (depends on config) [kg]: 7000
Max. payload [kg]: 17000
Strong ball rim bearing [mm]: 1100
Total dimensions (L x W x H) [mm]: 9410 x 2550 x 3020
Internal platform size [mm]: 7230 x 2410
Ground clearance (standard tyres) [mm]: 1420
Power requirements [kw / HP]: > 108 / 145

Technical specifications

• Permitted gross weight: 24,000 kg
• Weight without load (depends on configuration): 7,000 kg
• Max. payload: 17,000 kg
• Strong ball rim bearing: 1100 mm
• Total dimensions (L x W x H): 9410 x 2550 x 3020 mm
• Internal platform size: 7230 x 2410 mm
• Ground clearance (standard tyres): 1420 mm
• Power requirements: > 108 kW / 145 HP
• Frame made from closed double C profile: 320 x 120 x 6 mm
• Chrome hydraulic cylinder (levels): 2 x 5
• Diameter for every level of hydraulic cylinder: 120 / 105 / 90 / 75 / 60 mm
• Maximum lift height of hydraulic cylinder: 3000 mm
• Valve for stroke limitation of hydraulic cylinder: ● (standard)
• Required amount of oil for hydraulic cylinder: 45.0 liters
• Three-sided tipping angle (side / backwards): 45° / 48°
• Sidewall height: 800 + 800 mm
• Load volume: 27.9 ~ 38.3 m³ (depending on configuration)
• Grain release with lever: 506 x 300 mm
• Floor thickness: 5 mm
• Steel sideboards and extension boards with quick shutters: ●
• Plugged corner stanchions: ●
• Side and rear sideboards oscillate downwards: ●
• Electrical installation according to (EU) 2015/208 with LED technology: ●
