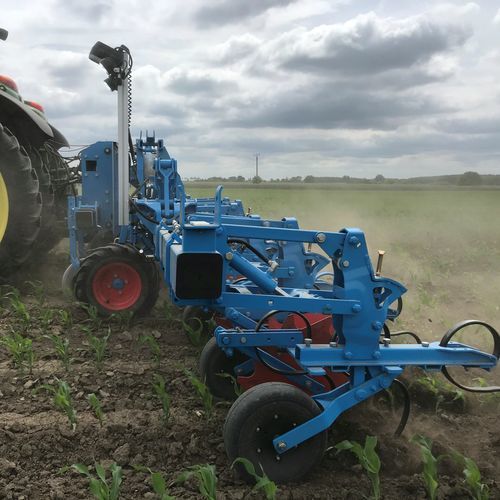

GPS guidance system

camera-basedfor agriculture machines

Product overview
The Feelcrop camera-guidance interface is designed for arable farming to guide one or two mechanical weeders with high positional accuracy. Compact and adaptable, it supports multiple weeder configurations and facilitates precision inter-row operations.

Functionality

• Preconfigured interface to control one or more mechanical weeders.
• Supports 1 or 2 cameras (second camera optional).
• Compatible with automatic guidance by row feelers for late-stage crops.
• Section shut-off per row available (GPS or manual).
• Three-point hitch: Tractor side CAT 3; Weeder side CAT 2/3.
• Travel stroke: 500 mm (approx. 25 cm left / 25 cm right).
• Reduced offset: 370 mm.
• Adjustable carrier coulter track: 1600–2400 mm.
• Weight: 712 kg.

Cameras
Color camera

• Enables fine tuning for specialised crops (e.g. cabbage, onions).
• Cab terminal for programming guidance parameters and live detection view.
• Proportional hydraulic block for smooth, accurate row tracking.
• Integrated lights to compensate for changing illumination.

3D camera

• Quick setup and user-friendly calibration.
• Minimum possible inter-row detection: 2.5 cm (with suitable configuration).
• Available with ISOBUS compatibility.
• Improved curve tracking via progressive movement using the proportional hydraulic block.
• Colour selection options to optimise detection per crop and growth stage.

Advantages

• Universal mounting on most mechanical weeders via three-point hitch.
• Reduced offset and 500 mm stroke ensure accurate guidance on slopes and uneven ground.
• Quick adjustment of carrier coulter track (1600–2400 mm) to match various inter-row widths.
• Autonomous, compact interface adaptable to multiple weeder brands and configurations.
• Integrated functions (1 or 2 cameras, feelers, section shut-off) simplify use and adaptation.

Applications

• Precision mechanical weeding in arable crops using one or more camera-guided weeders.
• Use on specialised crops requiring fine adjustments (cabbage, onions, etc.).

Technical specifications

• Hitch (Tractor side): CAT 3
• Hitch (Weeder side): CAT 2/3
• Travel stroke: 500 mm
• Reduced offset: 370 mm
• Weight: 712 kg
• Carrier coulter track adjustment: 1600–2400 mm
• Number of cameras: 1 or 2 (second camera optional)
• Minimum inter-row (3D camera): 2.5 cm
• Proportional hydraulic block for precise tracking
• ISOBUS compatible (depending on 3D camera configuration)
