Radar guidance system

camera-basedfor agriculture machines

Overview
The Feelcrop 3D camera guidance system provides precision row detection and automatic steering support when mounted on a self-steering frame. The 3D detection principle improves differentiation between crop and weeds by height, enabling operation at early growth stages.

Camera set designation

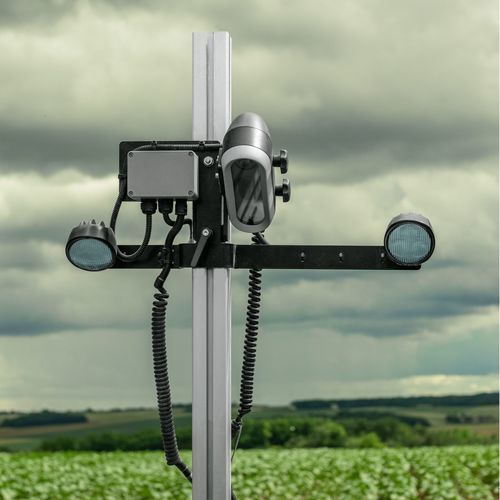

• Detection optics on adjustable pole
• Piloting ECU
• Setting terminal and control display
• Hydraulic system with proportional block
• Working lights
• Radar plug and plots (7-pin cab connection)

Advantages

• Improved curve correction: progressive movement via proportional hydraulic block
• Automatic angle and height correction for simplified setup
• Automatic left/right shift during impounded U-turns
• Selectable color settings to optimize detection for crop type and growth stage
• 3D mode detects height differences between crop and weeds for dense weed cover
• High-resolution camera enabling work at early crop stages

Documentation and media present on the page

• Camera kit composition sheet and technical diagrams
• Product image gallery showing system and components
• Field demonstration videos (operation, setup and close-ups)
• Product catalogue available for download

Adaptability
The system is delivered as an adaptable 3D camera guidance solution for self-steering frames. Settings can be optimized by crop type and development stage, and the 3D detection mode enhances performance in situations with significant weed cover.

Characteristics / technical specifications

• Included components: detection optics (adjustable pole), piloting ECU, setting terminal + control display, hydraulic system, working lights, radar plug and plots (7-pin cab)
• 3D detection based on height difference between crop and weeds
• High-resolution camera for accurate operation at early stages
• Proportional hydraulic block for progressive movements and improved curve correction
• Automatic corrections: angle, height and left/right shift (simplified settings)
• Color selection and tuning for different crops and growth stages
• Adaptable mounting for self-steering frames
