Manual guidance system

radarcamera-basedhydraulic

Overview

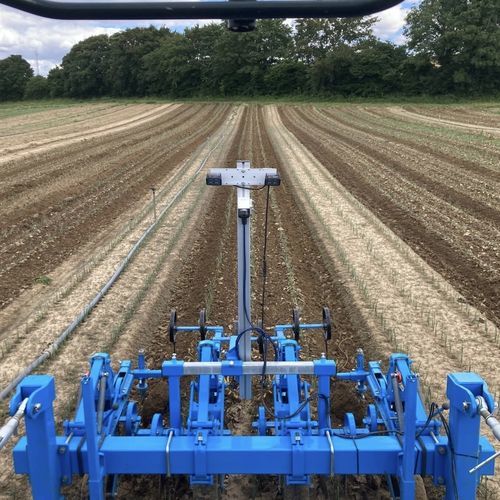

Colorimetric camera guidance system mounted on a self-steering frame for precision row guidance and weeding operations. The Feelcrop solution uses colorimetric detection to locate rows and guide implements with high repeatability under varied light and crop conditions.

Camera set

• Detection optics on adjustable pole
• Piloting ECU
• Setting terminal and control display
• Hydraulic system
• Working lights
• Radar plug included as standard + wiring for 7-pin in-cab connection

Designation
Adaptable colorimetric camera guidance system designed for integration with row feelers and compatible with self-steering frames for precision mechanical or mechanical-chemical weeding.

Manual hydraulic system
Manual hydraulic actuation is available as an option for the guidance interface where electro-hydraulic control is not required or retrofitting is necessary.

Spare parts
Spare parts and replacement kits are available for the camera set, control units, optics and hydraulic interfaces to support field maintenance and rapid repairs.

Video
Demonstration videos available showing operation scenarios, rear-view sequences and day/night performance to validate detection and guidance behaviour.

Documentation
Product referenced in the Feelcrop 2022 catalogue; technical datasheets and installation guides are provided for system integration.

Technical specifications

• System type: Colorimetric camera guidance for row feelers
• Mounting: Implemented on self-steering frame
• Detection: Optics on adjustable pole
• Control: Piloting ECU with setting terminal and control display
• Power/actuation: Hydraulic system (manual hydraulic option available)
• Lighting: Working lights for low-light operation
• Connectivity: Radar plug included; wiring for 7-pin in-cab connection
• Accessories: Spare parts and camera kit components available
• Media: Demonstration videos (operation, rear view, demos)
• Documentation: Referenced in Feelcrop 2022 catalogue
