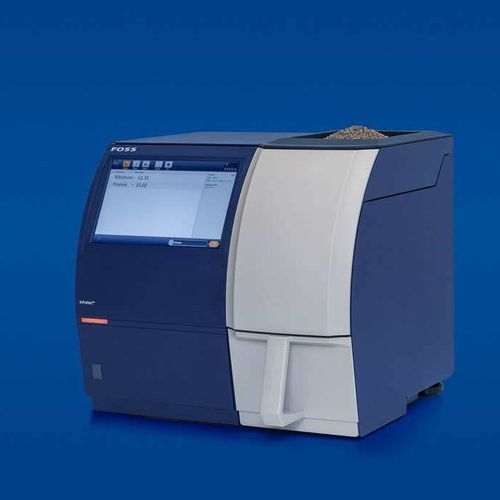

Grain analyzer Infratec™

oilsoybeanwheat

Overview
Solid, straightforward and reliable, Infratec™ uses near-infrared (NIR) technology to perform fast quantitative analysis of cereals and oilseeds. Designed for grain quality control in reception, storage and processing, it delivers consistent results for routine laboratory and on-site testing.

Key features

• Value: Simplifies quality control workflows with an intuitive touch interface and digital connectivity. Built on proven NIR calibration models and robust instrument design.
• Sample type: Barley, wheat, corn and other cereals, oilseeds, beans and pulses.
• Parameters: Moisture, protein, oil, test weight, starch, wet gluten, fibre, ash and many more.

ANN database
The Infratec™ database contains over 50,000 cross-checked reference samples. Calibrations use PLS and robust ANN models developed from many harvests and a wide sample range, providing stability and the ability to handle atypical samples worldwide.

Connectivity and software
FossConnect™ provides centralised network management for Infratec™, enabling remote configuration, monitoring and data management. Integration with FOSS IQX™ digital services and LIMS improves traceability and operational efficiency.

Established standard
Infratec™ is an internationally established standard for rapid determination of protein, moisture, oil and starch. A patented stabilising technique maintains result consistency across varying conditions. Operational temperature range: -4 °C to +40 °C. Example accuracy: protein predictive accuracy within 0.1% under validated conditions.

Technical specifications

• Dimensions (W x D x H): 410 x 460 x 415 mm
• Weight: 28.5 kg (31 kg with test weight module)
• Voltage: 220-240V 50-60Hz or 110-120V
• Rated current: 1.0A (110-120V) / 0.5A (220-240V)
• Fuse: T 5 A (250V)
• Power consumption: 85 W (24V)
• Input supply: 24V DC from FOSS approved power supply
• Spectrometer: Scanning monochromator
• Wavelength range: 570 - 1100 nm
• Detector: Silicon
• Optimal bandwidth: 7 nm
• Number of data points/scan: 1061
• Mode: Transmittance
• Light source: Tungsten halogen lamp
• Interface: Ethernet, 3 x USB (full function) including one front USB for easy access
• Display: 10-inch capacitive touch screen
• Noise Level: < 70 dB(A)
• Degree of protection: IP 54
• Analysis time: Less than 60 seconds for 10 sub-samples including test weight analysis; as little as 40 seconds when dynamic sub-sampling enabled
• Path length: Variable cell automatically controlled from 6 - 33 mm
• Result report: Presented on the display as default. Can be sent to PC/LIMS and the printer port
• Outlier function: Warnings and options for presentation of the result
• Software: Menu driven with touch screen interface
• Regression programs: ANN (Artificial Neural Network); PLS (Partial Least Squares)
• No. of sub-samples: Between 1 and 30 sub-samples (10 sub-samples standard)
• Digital services: Streamline operations and improve profitability with FOSS IQX™ digital solutions
• Service agreement: With a FOSS service agreement you secure operational uptime, regulatory compliance, and analytical accuracy
