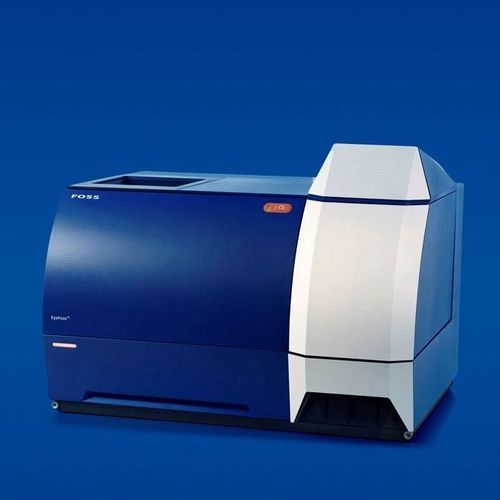

Wheat analyzer EyeFoss™

barleymoisturebenchtop

Overview
EyeFoss™ provides standardised image analysis for grain quality, delivering consistent results across operators and receival sites. It enables rapid, objective visual assessment of damaged grain and foreign material while increasing sample throughput for network-wide quality control.

Key claims

• Standardised assessment of visual parameters across measuring sites and objective measurement of damaged grain and foreign material for easy and reliable results.
• Throughput: Can assess 10,000 kernels, or a standard half‑litre sample, in approximately four minutes without adding extra time to the sampling process.
• Technology: Grain passes under a 3D laser, 2D lights and camera to capture data; the data are processed with calibrated algorithms to determine quality parameters.

Features

• Value: Standardised visual parameter assessment and objective measurement of damaged grain and foreign material.
• Sample type: Wheat, barley and durum.
• Parameters: Visually assessed parameters such as damaged grain and foreign material.
• User benefits: Consistent measurements by operators with minimal training; low maintenance and easy to clean; intuitive interface that reduces operator error.

Use case / testimonial
Delivers a broken‑grain rate in 3–4 minutes consistent with official laboratory analysis, enabling fast allocation of loads according to quality expectations and improving throughput at receival points.

Documentation
Brochures and white papers are available describing the EyeFoss™ solution, grain segment overview and best practices for sample preparation and calibration development. Network integration is supported via FossManager™ and FossIntegrator.

Specifications

• Dimensions (W x D x H): 660 x 490 x 620 mm
• Weight: 50 kg
• External fuses: T 4AL 250TP
• Rated current: 2.0 A (100 V) / 0.8 A (240 V)
• Power consumption: 200 VA
• Noise level: < 56 dB(A)
• Power supply: 100-240 V AC, frequency 50-60 Hz, Class 1, earthed. Mains supply voltage fluctuations not exceeding ±10 % of the rated voltage.
• Power cable: 115V UL/CSA: C13 connector 10 A 125 V, UL/CSA approved 3 wire cable with protection; ground SVT 18 AWG, UL/CSA approved. 230V CE: C13 connector 10 A 250 V, CE/VDE/S approved 3 wire cable 0.75mm2 H 05 VV-F, CE/VDE/S approved.
• Ambient temperature (operation): 5-42 °C
• Storage temperature: -20 °C to 70 °C
• Ambient humidity: < 93 % RH
• Operation: Indoor use
• Altitude: Up to 2000 m
• Transient over-voltage: According to category II
• Pollution: Degree 2
• Network services: FossManager™
• Software: FossIntegrator
