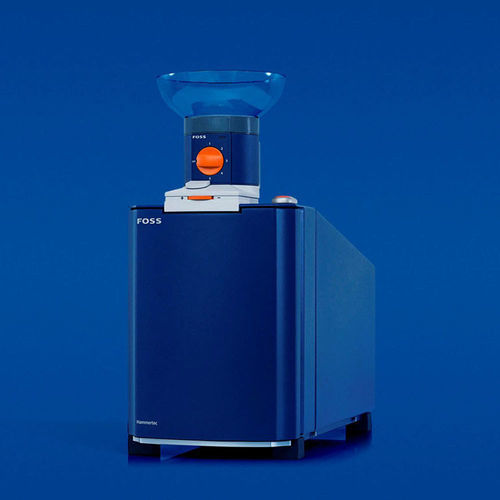

Wheat analyzer Hammertec™

barleypowderdistribution

Overview
This hammer-type mill is designed for sample preparation for Falling Number, gluten index and other reference analysis methods. Built for laboratory use, the Hammertec™ is compact and lighter than comparable units and reduces operating noise by at least 1.5 dB compared with existing solutions.

Features

• Design minimises sample carry-over: high-speed hammer impact crushes grains, feeds and meals into a fine, homogeneous powder to reduce cross-contamination and improve repeatability.
• Meets key AACCI / ICC / ISO requirements: configurable with 0.5 mm or 0.8 mm screens to produce meal with particle-size distribution matching method specifications (>500 μm: 0–10%; >210 and <500 μm: 25–40%; <210 μm: 75–50% for 0.5 mm; 0.8 mm screen suitable for wholemeal product as per ISO 8.1.3).

Sample type

• Dry, free-flowing whole cereal grain samples: common wheat, common rye, durum wheat and barley.

Parameters

• Primary application: laboratory sample preparation for reference analyses (Falling Number, gluten index, etc.).

Technical specifications

• Dimensions (W × H × D): 24 × 38 × 55 cm (without Auto-feeder); 24 × 52 × 55 cm (with Auto-feeder)
• Operating weight: 40.6 kg
• Power requirements: 200–240 VAC 50/60 Hz or 100–120 VAC 50/60 Hz
• Power consumption: 1300 W
• Thermal overload relay: 200–240 VAC, 7 A; 100–110 VAC, 14 A
• Motor speed: 2800 rpm (50 Hz); 3400 rpm (60 Hz)
• Hammer speed: 16,800 rpm
• Safety brake: Yes
• Noise level: < 80 dB
• Transient overvoltage category: 2
• Operating temperature: indoor use, 5–40 °C
• Relative humidity: max 80% up to 31 °C, decreasing linearly to 50% at 40 °C
• Pollution degree: 2
