Drip irrigation hose 351299

dripirrigationwith drip emitter

Product overview

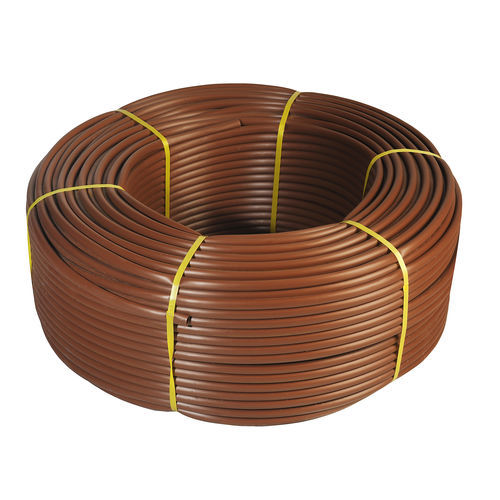

Drip irrigation pipe CARSYSTEM A manufactured for use as a drip-emitter branch in high-yield agricultural irrigation systems. Manufactured in nominal diameters 12, 16 and 20 mm, ideally suited for installation with button or punched drippers.

Technical table
PRESSURE (bar) | OUTER DIAMETER (mm) | FLOW (l/h) | WALL (mm) | ROLL (m) | CODE
2.5 | 16 | 380 | 1.2 | 400 | 351299

CARSYSTEM A CHARACTERISTICS/BENEFITS

• EASY HANDLING: Reduced wall thickness facilitates handling and the puncturing of irrigation emitters.
• ANTICRACKING: High resistance to cracking or rupture from circumferential stress caused by accessories or drippers inserted into the pipe. Quality controls carried out according to UNE 53367.

CARSYSTEM A SPECIFICATIONS

• Diameters: 12, 16 and 20 mm
• Nominal working pressure: 2.5 bar
• Can be manufactured in different colors
• Available with perforations to insert remote emitters on customer request

CARSYSTEM A APPLICATIONS

• Suitable for all types of crops and gardening

Technical characteristics / specifications

• Model/series: CARSYSTEM A
• Nominal diameters: 12 mm, 16 mm, 20 mm
• Nominal working pressure: 2.5 bar
• Example variant - Outer diameter: 16 mm
• Example variant - Wall thickness: 1.2 mm
• Example variant - Flow rate: 380 l/h
• Example variant - Roll length: 400 m
• Example variant - Product code: 351299
