Hose 369964

dripdrip irrigationirrigation

Product

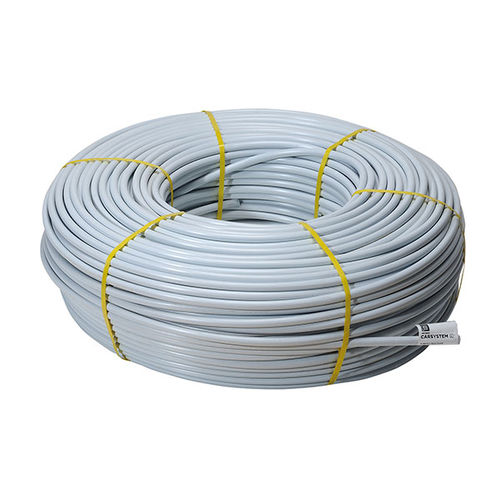

CARSYSTEM A drip irrigation pipe designed for use as a lateral drip line in high-yield agricultural and horticultural installations. Available in nominal diameters 12, 16 and 20 mm and optimised for installation with button drippers or inline emitters.

Characteristics / Benefits

• Easy handling: reduced wall thickness for simplified handling and easier puncturing for emitter insertion.
• Anticracking: engineered to resist cracking or rupture from circumferential stress caused by accessories or inserted drippers. Quality checks performed according to UNE 53367.

Specifications

• Diameters: 12 mm, 16 mm, 20 mm
• Nominal working pressure: 2.5 bar
• Wall thickness examples: 1.2 mm (16 and 20 mm versions)
• Typical roll length: 400 m
• Available in different colors; option for factory perforations to insert remote emitters on request

Applications

• Suitable for all types of field and horticultural crops, nurseries and drip irrigation for landscaping

Technical table
PRESSURE (bar) | OUTER DIAMETER (mm) | FLOW (l/h) | WALL (mm) | ROLL (m) | CODE
2.5 | 16 | 380 | 1.2 | 400 | 369964
2.5 | 20 | 588 | 1.2 | 400 | 351306

Technical characteristics / specifications

• Product name: CARSYSTEM ANTICRACKING WHITE
• Model / series: CARSYSTEM A
• Nominal diameters: 12, 16, 20 mm
• Nominal working pressure: 2.5 bar
• Wall thickness examples: 1.2 mm (for 16 and 20 mm versions)
• Typical roll length: 400 m
• Flow examples: 380 l/h (Ø16), 588 l/h (Ø20)
• Available in different colors; available with perforations for remote emitters on request
• Quality control: UNE 53367 standard
