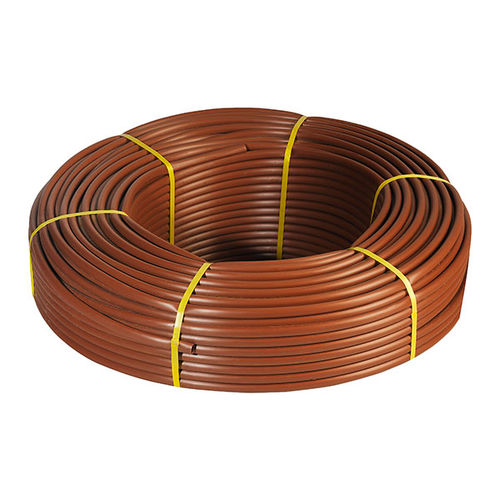

Drip irrigation hose 350761

with drip emittersoaker

Overview
Drip irrigation branch pipe CARSYSTEM A, manufactured for use as a branch line for button or punctured emitters in high-yield agricultural systems. Available in nominal diameters 12 mm, 16 mm and 20 mm and suitable for installation with button drippers or punctured emitters.

Technical data (table)
PRESSURE (bar) | OUTER DIAMETER (mm) | FLOW (l/h) | WALL (mm) | ROLL (m) | CODE
2.5 | 16 | 380 | 1.2 | 100 | 350761
2.5 | 16 | 588 | 1.2 | 50 | 350767
2.5 | 16 | 1630 | 1.2 | 25 | 350765

Characteristics / Benefits

• EASY HANDLING: reduced wall thickness for easier handling and easier insertion/puncturing of irrigation emitters.
• ANTI-CRACKING: polymer composition provides high resistance to cracking or rupture from circumferential stress caused by accessories or drippers; quality controls carried out according to UNE 53367.

Specifications

• Diameters: 12 mm, 16 mm and 20 mm.
• Nominal working pressure: 2.5 bar.
• Available in different colors (brown shown).
• Optional pre-perforations for remote emitters available on request.

Applications

• Suitable for all types of crops and landscaping/gardening applications.

Technical specifications

• Intended use: drip irrigation branch line for high-yield agricultural systems.
• Nominal diameters: 12 mm, 16 mm, 20 mm.
• Nominal working pressure: 2.5 bar.
• Example wall thickness: 1.2 mm (shown variants).
• Roll lengths shown: 100 m, 50 m, 25 m (codes: 350761, 350767, 350765 for the 16 mm variants).
• Example flows for 16 mm: 380 l/h, 588 l/h, 1630 l/h depending on variant.
• Features: easy handling, anti-cracking composition, quality controls per UNE 53367, color options, optional perforations for remote emitters.
