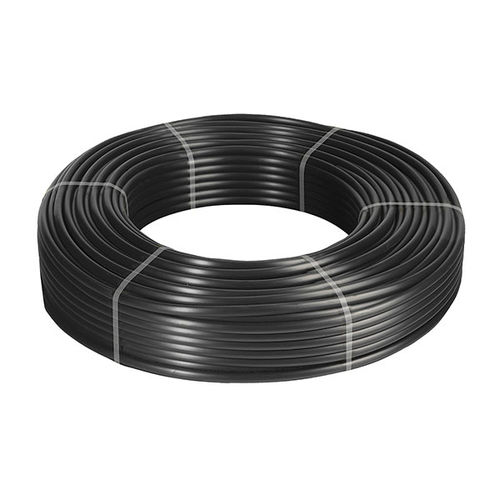

Drip irrigation hose 350755

gardenwith drip emitter

Product
Manufactured specifically for use as a drip irrigation lateral in high-yield agricultural systems. Produced in nominal diameters 12, 16 and 20 mm and designed for straightforward installation of button drippers.

Technical table
PRESSURE (bar) | OUTER DIAMETER (mm) | CIRCULATING FLOW (l/h) | WALL (mm) | ROLL (m) | CODE
2.5 | 12 | 380 | 1.0 | 100 | 350755
2.5 | 16 | 588 | 1.2 | 100 | 350760
2.5 | 20 | 1630 | 1.3 | 100 | 350768

CARSYSTEM A CHARACTERISTICS / BENEFITS

• EASY HANDLING: Reduced wall thickness for easier handling and simplified puncturing for irrigation emitters.
• ANTICRACKING: Compound formulation provides high resistance to cracking or rupture from circumferential stress caused by accessories or drippers inserted into the pipe. Quality controls performed in accordance with UNE 53367.

CARSYSTEM A SPECIFICATIONS

• Diameters: 12, 16 and 20 mm
• Nominal working pressure: 2.5 bar
• Available in different colors
• Available with perforations to insert remote emitters on customer request

CARSYSTEM A APPLICATIONS

• Suitable for all types of crops and landscaping irrigation

Technical characteristics / specifications

• Product name: CARSYSTEM ANTICRACKING TRANSFORMED
• Series / commercial denomination: CARSYSTEM A
• Nominal diameters: 12 mm, 16 mm, 20 mm
• Nominal working pressure: 2.5 bar
• Compatibility: Ideally suited for installation with button drippers
• Available options: different colors; perforated version to insert remote emitters (on request)
• Table (selected items): 12 mm — Flow: 380 l/h — Wall: 1.0 mm — Roll: 100 m — Code: 350755; 16 mm — Flow: 588 l/h — Wall: 1.2 mm — Roll: 100 m — Code: 350760; 20 mm — Flow: 1630 l/h — Wall: 1.3 mm — Roll: 100 m — Code: 350768
• Quality: Anticracking tests and quality controls according to UNE 53367
