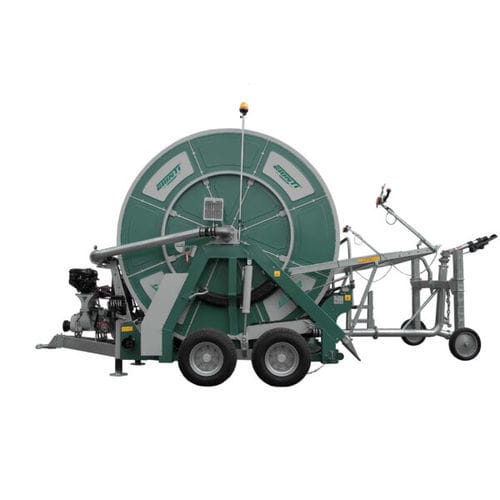

Irrigation hose reel 06.HM
turbine-drive

irrigation hose reel
irrigation hose reel
Add to favorites
Compare this product


Characteristics

Application
for irrigation
Drive type
turbine-drive
Hose diameter

125 mm, 140 mm
(4.92 in, 5.51 in)

Description

HM models PE hose size is between 125mm and 140mm with lengths ranging from 550 to 7000 meters. Description CONSTRUCTION SPECIFICATIONS – high strength “medium density” polyethylene Pipe with differentiated thickness; -hydraulic lift of the wheels and of the front foot; – high efficiency hydraulic turbine included in the gearbox/transmission; – motion transmission to the drum through the coupling of the pinion with a large diameter ring gear; -emergency PTO input with the help of the cardan shaft on the tractor; rotating turret, by using large diameter rotational bearings; – locking pin turret release device; a device guides a worm gear tube for an optimal backward; mechanical safety device against any wrong overlapping of the pipe while rewinding, with automatic stop of the cycle; a by-pass valve controls the speed of return with hydraulic and manual control; – automatic stop of the cycle when the sprinkler cart is completely retracted; -painted frame; -painted reel; -water path and accessories in galvanized steel; -sprinkler trolley; -sprinkler; – safety devices in accordance with the EU requirements. STANDARD EQUIPMENT – galvanized mono frame supporting the machine on the ground; 4 speed transmission gearbox; – instantaneous speed of return visualizer; – water pressure gauge at the entrance of the machine; – hydraulic actuating parking foot, lifting wheels, handling trolley, rear foot parking, powered by the tractor hydraulic system; – height adjustable trailer hitch; – variable carriageway – 2 water inlets on the sides.

Catalogs

No catalogs are available for this product.

See all of Giunti spa‘s catalogs
