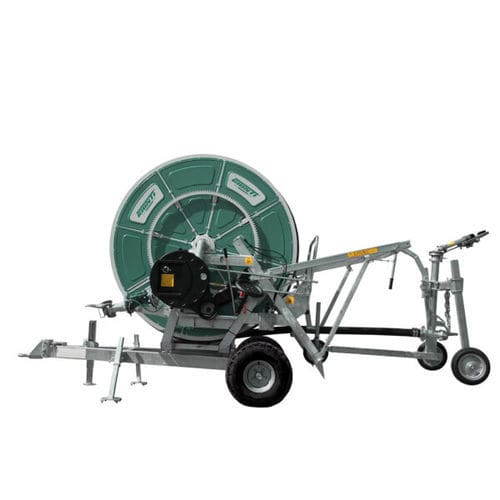

Irrigation hose reel 04.TD
hydraulic drive

irrigation hose reel
irrigation hose reel
Add to favorites
Compare this product


Characteristics

Application
for irrigation
Drive type
hydraulic drive
Hose diameter

75 mm, 110 mm
(2.95 in, 4.33 in)

Hose length

Max.: 340 m
(1115'05" )

Min.: 250 m
(820'02" )

Description

CONSTRUCTION SPECIFICATIONS – high strength “medium density” polyethylene Pipe with differentiated thickness; – high efficiency hydraulic turbine included in the gearbox/transmission; – motion transmission to the drum through the coupling of the pinion with a large diameter ring gear; -emergency PTO input with the help of the cardan shaft on the tractor; rotating turret, by using large diameter rotational bearings housed between the fixed lower frame and the upper one; – locking pin turret release device positioned outside the lifting trolley frame; a device guides a worm gear tube for an optimal backward; mechanical safety device against any wrong overlapping of the pipe while rewinding, with automatic stop of the cycle; a by-pass valve controls the speed of return with hydraulic and manual control; – automatic stop of the cycle when the sprinkler cart is completely retracted; -galvanized frame; -water path and accessories in galvanized steel; -sprinkler trolley; -sprinkler; – safety devices in accordance with the EU requirements. STANDARD EQUIPMENT – 4 speed transmission gearbox; – instantaneous speed of return visualiuzer; – water pressure gauge at the entrance of the machine; – handling trolley manual hydraulic device and foot rear parking; – rotating platform – 2 extra front feet stationing; – height adjustable trailer hitch; – variable carriageway – 2 water inlets on the sides.
