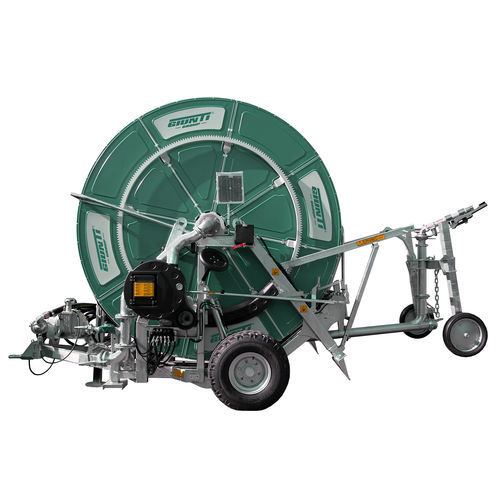

Irrigation hose reel 05.HI
turbine-drivetowed

irrigation hose reel
irrigation hose reel
Add to favorites
Compare this product


Characteristics

Application
for irrigation
Drive type
turbine-drive
Other characteristics
towed
Hose diameter

100 mm, 140 mm
(3.94 in, 5.51 in)

Hose length

Max.: 550 m
(1804'05" )

Min.: 280 m
(918'07" )

Description

Tornado HI HI models PE hose size is between 100mm and 140mm with lengths ranging from 280 to 550 meters. Description CONSTRUCTION SPECIFICATIONS – high strength “medium density” polyethylene Pipe with differentiated thickness; – high efficiency hydraulic turbine included in the gearbox/transmission; – motion transmission to the drum through the coupling of the pinion with a large diameter ring gear; -emergency PTO input with the help of the cardan shaft on the tractor; rotating turret, by using large diameter rotational bearings housed between the fixed lower frame and the upper one; – locking pin turret release device; a device guides a worm gear tube for an optimal backward; mechanical safety device against any wrong overlapping of the pipe while rewinding, with automatic stop of the cycle; a by-pass valve controls the speed of return with hydraulic and manual control; – automatic stop of the cycle when the sprinkler cart is completely retracted; -galvanized frame; -water path and accessories in galvanized steel; -sprinkler trolley; -sprinkler; – safety devices in accordance with the EU requirements. STANDARD EQUIPMENT – galvanized mono frame supporting the machine on the ground; 4 speed transmission gearbox; – instantaneous speed of return visualiuzer; – water pressure gauge at the entrance of the machine; – hydraulic actuating parking foot, lifting wheels, handling trolley, rear foot parking, powered by the tractor hydraulic system; – height adjustable trailer hitch; – variable carriageway – 2 water inlets on the sides.
