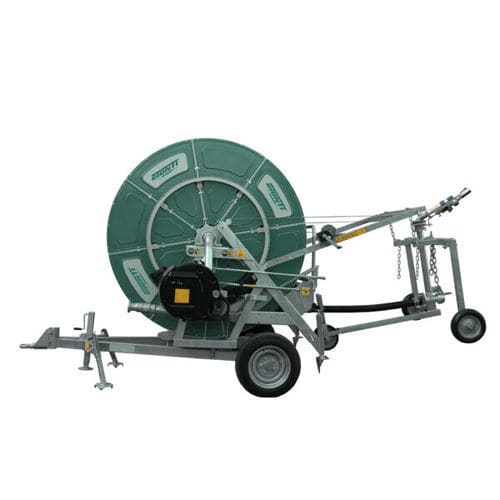

Irrigation hose reel 03.TC
turbine-drive

irrigation hose reel
irrigation hose reel
Add to favorites
Compare this product


Characteristics

Application
for irrigation
Drive type
turbine-drive
Hose diameter

70 mm, 90 mm
(2.76 in, 3.54 in)

Hose length

Max.: 300 m
(984'03" )

Min.: 220 m
(721'09" )

Description

TC models PE hose size is between 70mm and 90mm with lengths ranging from 220 to 300 meters. Description CONSTRUCTION SPECIFICATIONS – high strength “medium density” polyethylene Pipe (with differentiated thickness in diameters over 75mm); – high efficiency hydraulic turbine included in the gearbox/transmission; – motion transmission to the drum through the coupling of the pinion with a large diameter ring gear; -emergency PTO input with the help of the cardan shaft on the tractor; rotating turret, by using large diameter rotational bearings housed between the fixed lower frame and the upper one; -a device guides a worm gear tube for an optimal backward; mechanical safety device against any wrong overlapping of the pipe while rewinding, with automatic stop of the cycle; a by-pass valve controls the speed of return with hydraulic and manual control; – automatic stop of the cycle when the sprinkler cart is completely retracted; -galvanized frame; -water path and accessories in galvanized steel; -sprinkler trolley; -sprinkler; – safety devices in accordance with the EU requirements. STANDARD EQUIPMENT – 4 speed transmission gearbox; – instantaneous speed of return visualiuzer; – water pressure gauge at the entrance of the machine; – manual mechanical devices handling trolley and foot rear parking; – rotating platform – 2 extra front feet stationing; – height adjustable trailer hitch; – variable carriageway.
