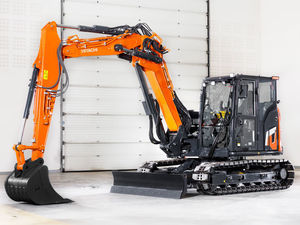

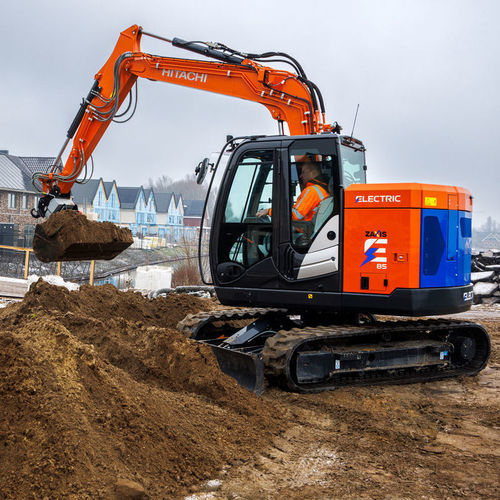

Tracked excavator ZX85-6EB

compact

Overview
With the ZX85-6EB, Hitachi introduces an eight-tonne class battery-powered excavator engineered for low- and zero-emission job sites. This model leverages Hitachi’s expertise in electric equipment and large wired excavators to deliver an emission-free operating option for urban and regulated environments.

Key features

• Battery-powered eight-tonne class excavator (first Hitachi-branded model in this class)
• Battery capacity (full package): 133 kWh
• Bucket digging force (ISO): 55.0 kN
• Operating weight: 8 750 kg
• Available in: Europe

Benefits

• Lower noise levels compared with diesel models, suitable for urban and night-time operations
• Short-tail (reduced rear overhang) for easier operation in confined spaces
• Reduced maintenance and less downtime versus conventional diesel machines
• Emission-free operation when running on battery, with option for wired electric operation for extended work cycles

Attachments

• Compatible with Hitachi buckets and ground engaging tools (GET) to maximise productivity and uptime
• Wide range of bucket types available to match application requirements
• Quick coupler options: CW, pin grabber and S-coupling

Technical specifications

• Electrical system: Battery type — Lithium-ion
• Electrical system: Battery capacity (full package) — 133 kWh
• Electrical system: Indicative runtime (depending on application) — 5.5 hours
• Bucket and arm digging force: Bucket digging force (ISO) — 55.0 kN
• Bucket and arm digging force: Arm crowd force (ISO) — 32.0 kN
• Specifications: Operating weight — 8 750 kg
• Operating weight and ground pressure: Shoe type — Rubber / Grouser / Pad
• Operating weight and ground pressure: Shoe width — 450 mm
• Operating weight and ground pressure: Arm length — 2.12 m
• Working ranges: Max. digging reach — 6.92 m
• Working ranges: Max. digging depth — 4.61 m
• Working ranges: Max. dumping height — 5.51 m
• Dimensions: Undercarriage length — 2.92 m
• Dimensions: Overall width of upperstructure — 2.32 m
• Dimensions: Overall height of cab — 2.69 m
