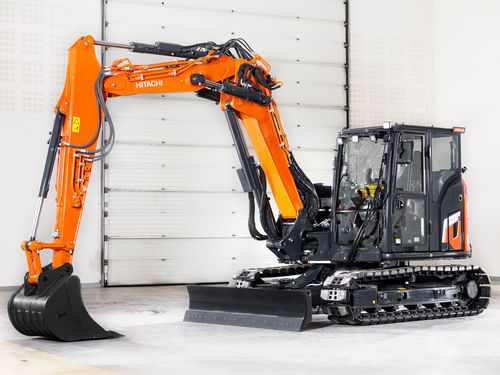

Compact excavator ZX95US-USB-7

hydraulictracked

Overview
The ZX95US-USB-7 medium compact crawler excavator delivers a spacious Zaxis-7 cab environment, low noise levels and reliable Stage V-compliant performance. It is designed for general earthmoving, utility and construction tasks where maneuverability and operator comfort are priorities.

Key model data

• Engine rated power (ISO 14396): 50.4 kW
• Operating weight: 8 320 - 9 850 kg
• Backhoe bucket ISO heaped capacity: 0.28 m3
• Market availability: Europe

Benefits

• ECO gauge on the monitor helps reduce fuel consumption and operating costs.
• Stage V-compliant engine without SCR simplifies aftertreatment—no urea required.
• Redesigned cab with integrated console and seat suspension reduces noise and vibration for improved operator comfort.

Attachments

• Durable hydraulic breakers, buckets and ground engaging tools (GET) to maximise productivity and uptime.
• Wide range of manufacturer buckets and optional quick couplers to suit applications.
• Hitachi-approved breakers and GET are easy to maintain and replace safely.

Engine & hydraulic system (table)
Engine model: 4TNV98CT
Engine type: 4-cycle water-cooled, common rail direct injection, turbocharged
Aspiration: Cooled EGR
Aftertreatment: Muffler filter (Stage V-compliant engine without SCR)
No. of cylinders: 4
Piston displacement: 3.318 L
Rated power ISO 14396: 50.4 kW at 2 000 min-1
Maximum torque: 292.9 Nm at 1 300 min-1
Main pumps: 3 variable displacement axial piston pumps
Maximum oil flow: 2 x 72 L/min, 1 x 56 L/min
Pilot pump: 1 gear pump (max flow 20.0 L/min)

Bucket and arm digging force (table)
Bucket digging force ISO: 57.5 kN
Arm crowd force ISO: 34.5 kN

Operating weight and ground pressure (table)
Shoe type: Grouser / Rubber / Pad
Shoe width: 450 - 600 mm
Monoblock weight: 8 850 - 9 030 kg (pressure 30 / 39 kPa)
2-piece weight: 9 080 - 9 420 kg (pressure 31 – 41 kPa)

Working ranges (table)
Arm length options: 1.62 m / 2.12 m
Maximum digging reach: 6 870 - 8 060 mm
Maximum digging depth: 3 760 - 4 650 mm
Maximum dumping height: 5 120 - 5 930 mm

Dimensions (table)
Undercarriage length: 2 900 mm
Undercarriage width: 2 200 mm
Overall width of upper structure: 2 260 mm
Overall height of cab: 2 530 mm

Summary specifications (table)
Engine rated power (kW): 50.4 kW (ISO14396)
Operating weight: 8 320 - 9 850 kg
Backhoe bucket ISO heaped: 0.28 m3
Bucket digging force (kN) ISO: 57.5 kN

Technical specifications

• Model: ZX95US-USB-7
• Engine model: 4TNV98CT
• Engine type: 4-cycle water-cooled, common rail direct injection, turbocharged
• Aspiration: Cooled EGR
• Aftertreatment: Muffler filter (Stage V-compliant engine without SCR)
• No. of cylinders: 4
• Piston displacement: 3.318 L
• Rated power (ISO 14396): 50.4 kW at 2,000 min-1
• Maximum torque: 292.9 Nm at 1,300 min-1
• Main pumps: 3 variable displacement axial piston pumps
• Maximum oil flow: 2 x 72 L/min, 1 x 56 L/min
• Pilot pump: 1 gear pump (max flow 20.0 L/min)
• Bucket digging force (ISO): 57.5 kN
• Arm crowd force (ISO): 34.5 kN
• Operating weight: 8,320 - 9,850 kg
• Shoe type: Grouser / Rubber / Pad (width 450 - 600 mm)
• Undercarriage length: 2,900 mm; undercarriage width: 2,200 mm
• Overall width of upper structure: 2,260 mm; overall height of cab: 2,530 mm
• Arm length options: 1.62 m or 2.12 m
• Max. digging reach: 6,870 - 8,060 mm; max. digging depth: 3,760 - 4,650 mm
• Max. dumping height: 5,120 - 5,930 mm
• Backhoe bucket ISO heaped capacity: 0.28 m3
