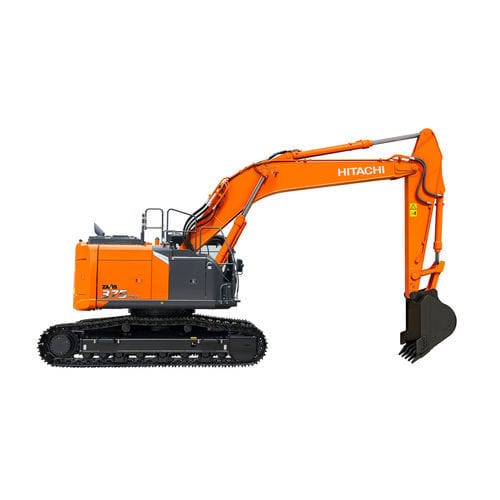

Tracked excavator ZX375US-7

hydraulic

Overview
The ZX375US-7 is a medium hydraulic excavator designed for heavy lifting and productive digging in confined job sites thanks to its ultra short-tail configuration. It combines a 197 kW Isuzu 6HK1X engine with Hitachi's TRIAS hydraulic system to deliver strong hydraulic power, precise controllability and improved fuel efficiency. The machine is suited to construction, infrastructure and heavy-duty earthmoving tasks.

Key features

• Engine rated power (ISO14396): 197 kW
• Operating weight: 35,600 kg
• Backhoe bucket ISO heaped: 1.00 - 1.62 m3
• Ultra short-tail design for confined environments
• Region availability: Europe

Engine & hydraulic system
Engine model: Isuzu 6HK1X
Engine type: 4-cycle water-cooled, common rail direct injection
Aspiration: Variable geometry turbocharger, intercooled, cooled EGR
Aftertreatment: DOC + CSF + SCR system
Main pumps: 3 variable displacement axial piston pumps
Maximum oil flow: 2 x 236 L/min + 1 x 211 L/min
Pilot pump flow: 36.9 L/min

Bucket and arm digging force
Bucket digging force (ISO): 158 kN
Arm crowd force (ISO): 202 kN

Operating weight and undercarriage
Shoe type: Triple grouser
Shoe width: 600 mm
Arm length: 3.11 m
Operating weight: 35,600 kg

Working ranges & dimensions
Max. digging reach: 10,900 mm
Max. digging depth: 6,920 mm
Max. dumping height: 8,380 mm
Undercarriage length x width: 4,970 mm x 3,190 mm
Overall width of upper structure: 3,050 mm
Overall height of cab: 3,150 mm
Overall width: 3,190 mm

Specifications (summary)

• Model: ZX375US-7
• Engine: Isuzu 6HK1X, 197 kW (ISO14396)
• Operating weight: 35,600 kg
• Bucket capacity (ISO heaped): 1.00 - 1.62 m3
• Bucket digging force (ISO): 158 kN
• Arm crowd force (ISO): 202 kN
• Undercarriage: Triple grouser shoes 600 mm
• Max. digging reach/depth/dump height: 10,900 / 6,920 / 8,380 mm
