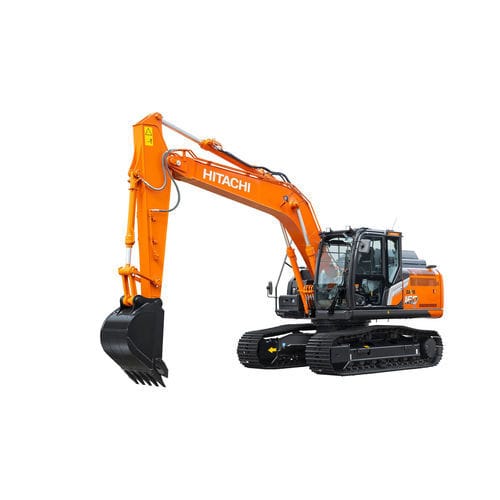

Tracked excavator ZX160-7

hydraulic

Overview
The ZX160-7 medium excavator features a modern cab with enhanced operator comfort and safety. Designed and tested in Japan, the model balances durability, fuel efficiency and versatility to support a wide range of earthmoving applications.

Key data
Engine rated power: 101.3 kW (ISO 14396)
Operating weight: 17 700 – 19 000 kg
Backhoe bucket ISO heaped: 0.52 – 0.82 m³
Available in: Europe

Benefits

• Up to 6% reduced fuel consumption compared to previous models, lowering operating costs.
• Improved hydraulic efficiency thanks to the HIOS IV system for stable cycle times.
• Versatile configuration with mono or two-piece boom options to match jobsite requirements.
• Crew comfort improvements: integrated console, seat suspension, reduced noise and vibration levels for longer productive shifts.

Attachments

• Hydraulic breakers, buckets and ground engaging tools (GET) compatible with the ZX160-7 to maximise uptime.
• Wide range of Hitachi buckets and optional quick coupler connections for fast tool changes.
• Breakers and GET designed for straightforward maintenance and long service life.
• Components engineered for precise fit and safe, quick replacement.

Engine & hydraulic system
Engine model: Yanmar 4TN107
Engine type: 4-cycle water-cooled, common rail direct injection
Aspiration: Turbocharged, intercooled, cooled EGR
Aftertreatment: DOC + CSF + SCR
Number of cylinders: 4
Rated power (ISO 14396): 101.3 kW at 1 900 min-1
Maximum torque: 602 Nm at 1 500 min-1
Main pumps: 2 variable displacement axial piston pumps (maximum oil flow 2 x 190 L/min)
Pilot pump: 1 gear pump (maximum 31.9 L/min)

Bucket and arm digging force
Bucket digging force (ISO 6015): 112 kN
Arm crowd force (ISO 6015): 91 kN

Operating weight and ground pressure
Shoe type: Triple grouser
Shoe width: 500 – 800 mm
Arm length: 2.58 m
Monoblock weight: 17 700 – 19 800 kg (ground pressure 33 – 43 kPa)
2-piece boom weight: 18 200 – 19 000 kg (ground pressure 34 – 53 kPa)

Working ranges
Arm length: 2.58 m
Maximum digging reach: 8 870 mm
Maximum digging depth: 5 980 mm
Maximum dumping height: 6 170 mm

Dimensions
Undercarriage length: 3 920 mm
Undercarriage width: 2 500 mm
Overall width of upperstructure: 2 480 mm
Overall height of cab: 2 500 mm
Overall width: 2 520 mm

Specifications (summary)
Engine rated power: 101.3 kW (ISO 14396)
Operating weight: 17 700 – 19 000 kg
Backhoe bucket ISO heaped: 0.52 – 0.82 m³
Maximum digging depth: 5 980 mm

Technical specifications

• Engine model: Yanmar 4TN107
• Engine type: 4-cycle water-cooled, common rail direct injection
• Aspiration: Turbocharged, intercooled, cooled EGR
• Aftertreatment: DOC + CSF + SCR
• Number of cylinders: 4
• Rated power (ISO 14396): 101.3 kW at 1 900 min-1
• Maximum torque: 602 Nm at 1 500 min-1
• Main pumps: 2 variable displacement axial piston pumps (2 x 190 L/min)
• Pilot pump: 1 gear pump (31.9 L/min)
• Bucket digging force (ISO 6015): 112 kN
• Arm crowd force (ISO 6015): 91 kN
• Shoe type: Triple grouser
• Shoe width: 500 – 800 mm
• Arm length: 2.58 m
• Monoblock weight: 17 700 – 19 800 kg
• Monoblock ground pressure: 33 – 43 kPa
• 2-piece boom weight: 18 200 – 19 000 kg
• 2-piece boom ground pressure: 34 – 53 kPa
• Maximum digging reach: 8 870 mm
• Maximum digging depth: 5 980 mm
• Maximum dumping height: 6 170 mm
• Undercarriage length: 3 920 mm
• Undercarriage width: 2 500 mm
• Overall width of upperstructure: 2 480 mm
• Overall height of cab: 2 500 mm
• Overall width: 2 520 mm
• Backhoe bucket ISO heaped: 0.52 – 0.82 m³
