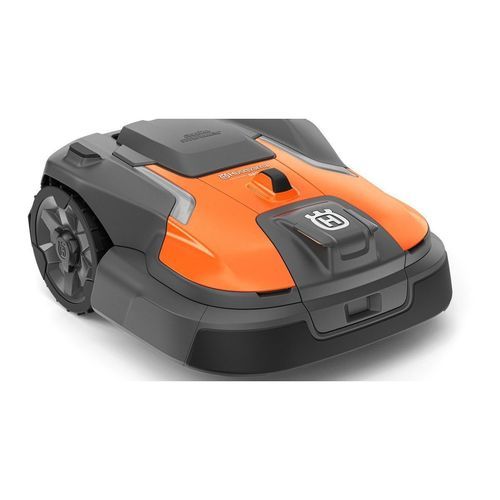

Robotic lawn mower Automower® 560 EPOS®

electricbattery-powered

Description
Husqvarna Automower® 560 EPOS® is a commercial robotic mower designed for efficient turf management on corporate, municipal and multi-area sites. Built on a medium-size platform and backed by decades of robotic mower development, this model delivers reliable autonomous mowing with satellite-based Husqvarna EPOS® for wire-free installation. EPOS RS5 Reference Station is required.

Key features

• Husqvarna EPOS® wire-free Technology — RTK-GNSS satellite positioning for virtual boundary operation with approx. 2 cm accuracy.
• Selectable mowing patterns — choose parallel, diamond, triangle or checkerboard patterns to optimise turf appearance.
• Warning lights — pulsating or steady options for night-time visibility.
• Husqvarna Fleet Services™ — remote monitoring, control and analytics via app or web.
• Pivoting front-wheel axle — keeps wheels in contact with uneven ground for improved traction.
• Quick-release cutting disc — 1-bolt attachment for fast blade replacement.
• Floating cutting system — spring-loaded unit adapts to ground contours.
• Object detection by radar — built-in radar sensors for obstacle detection and avoidance.
• IPX5 protection — hose-cleanable design for easy maintenance.
• 180° Service Position — rubber-supported body for safe upside-down transport and servicing.
• Enhanced remote start options — restart via mobile app.
• Dock by wire option — local wired docking where satellite coverage is limited.
• Customized work areas — set unique schedules, cutting heights and patterns per area.
• Temporary stay-out zones — create or remove no-mow zones via the app for events or seeding.
• EPOS® guidance — calculates efficient routes to and from the docking point.
• appDrive — remote driving via smartphone for positioning and service support.
• Pro user interface — professional controls for fleet operators.
• Electric height adjustment (patented) — set cutting height from the Automower® Connect app.
• 5-blade cutting disc — commercial 5-blade Enhance HSS disc for high cutting performance.
• Manages slopes up to 50% inside installation — coarse-tread wheels for traction.
• Built-in theft protection — GPS tracking, geofence, alarm and PIN protection.

Additional product notes
Designed for continuous seasonal operation with normal maintenance. The combination of freely rotating razor blades and the floating cutting system provides consistent cutting quality in wet conditions. Maintenance is simplified with a quick-release cutting disc and hose-washable surfaces.

Technical specifications

• Lawn size (±20%): 1.5 acre
• Boundary type: Virtual wire (EPOS® wire-free)
• Maximum slope at boundary: 20 %
• Maximum slope inside installation: 50 %
• Max active time: 24 h
• Follow guide: Virtual transport path
• Charging system: Automatic
• Weight: 38 lbs
• Dimensions (W×H×L): 23.2 in × 12.2 in × 30.7 in
• Color: Orange
• Sound level (A): 64 dB(A)
• Protection Index: IPX5
• Battery chemistry: Li‑Ion
• Battery capacity: 8 Ah
• Charging current: 7 A
• Typical mow time per charge: 150 min
• Typical charging time: 55 min
• Area capacity – Standard 48: 3 acre
• Area capacity – Sports 24: 1.5 acre
• Cutting system: 5 pivoting razor blades
• Cutting height, max: 2.4 in
• Cutting height, min: 0.8 in
• Cutting width: 10.2 in
• Cutting height adjustment: Electric
• Skid plate: Yes
• Dual cutting direction: Yes
• User interface: Professional UI / App
• Connectivity: Cellular, Bluetooth®
• App controlled: Husqvarna Fleet Services
• Firmware update: FOTA
• GPS theft tracking: Yes
• GeoFence: Yes
• PIN code: Yes
• Alarm: Yes
• Lift sensor: Yes
• Tilt sensor: Yes
• Object detection: Radar
