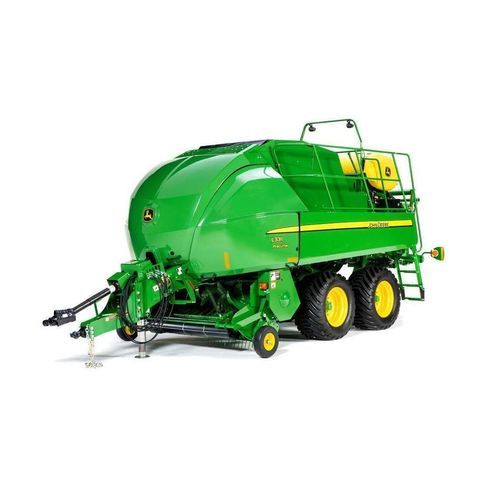

Square baler L331R

large

Overview

• Large square baler designed for 80 x 90 cm bales with configurable length and density control
• MegaWide™ pickup and MegaTough™ pickup teeth for high-capacity intake
• Integrated moisture sensor and John Deere bale weighing system
• ISOBUS-compatible controls and BalerAssist drivetrain

MegaWide™ pickup with MegaTough™ pickup teeth
The pickup is manufactured by John Deere in Ottumwa, Iowa. A low-profile pickup drum with a large-diameter roller baffle compresses crop against the tines to increase intake efficiency and reduce crop loss.

• 2.2 m (7.2 ft) pickup available on L331R and L341R; tooth-to-tooth width 1.92 m (76 in.); standard or premium component options; eight staggered tooth bars to reduce overload; semi-pneumatic fixed gauge wheels for ground gauging.
• MegaTough pickup teeth offer increased strength and durability; heavy-duty end teeth improve crop retrieval.
• Chain-driven feeding with mechanical cutout clutch protection for durability.

Premium MegaWide™ pickup
Optional premium pickup upgrades include larger cams, cam bearings, and larger spider gears with bearings to extend service life and reduce noise during operation.

Double-tie knotter system
Gear- and driveline-driven double-tie knotters provide consistent knotting under high density and challenging conditions. Knotters feature integrated auto-lube, grease ports, and accessible adjustment screws.

• Integrated auto-lube in knotter frames with two internal grease ports to lower pre-baling maintenance.
• Split knotter frame mounted to intermittent gear for removal without servicing the knotter stack.
• Sealed gear tensioners for consistent twine tension; twine stored in single-row boxes routed to sealed tensioners.

Connection point and lube line reductions (knotter system)
L331 — Connection points reduced: 8
L341 — Connection points reduced: 12
L331 — Lube line reduction: 16.8 m (55 ft)
L341 — Lube line reduction: 25.3 m (83 ft)

Knotter trip system
The knotter trip is driven by gearbox and driveline to maintain needle-to-plunger timing with hardened cast-iron components. The gearbox rotates the system around 360° to complete ties. Two trip options are available: mechanical or electrical. The electrical trip enables bale-length adjustment and final-bale tie-off from the cab, reduces maintenance, improves length accuracy, and provides predictive tie functions.

Baler monitor and ISOBUS compatibility
ISOBUS-compatible control works with ISOBUS monitors and John Deere GreenStar displays. Features include user-selectable main screens, direction arrows for uniform bales, electronic knotter flags, status feedback (flywheel brake/precutter/greasing/lighting/bale chute/bale drop), and display of bale weight and moisture when equipped. Bale counts selectable by field/customer/season/lifetime.

Moisture sensor
Integrated moisture sensor mounted forward in the bale chamber provides real-time bale moisture readings during baling and can interface with the preservative system to adjust application rates.

Weighing system
John Deere bale weighing system measures bale weight flake-by-flake via sensors on the pre-compression chamber floor and displays current and prior bale weights on the monitor to support consistent bale production.

Preservative applicator
Optional factory-installed preservative system supports harvesting at higher moisture to reduce spoilage risk. Key elements: 567 L (150 U.S. gal.) poly tank, 12-V diaphragm pump, integration with John Deere electronics, ExactApply™ nozzles, and crop-detection sensors to apply preservative only when crop is present.

BalerAssist drivetrain system
Hydraulic drivetrain control enabling forward and reverse at two speeds each direction (up to ~4 plunger strokes/min). Benefits include faster plug removal, reduced maintenance time, and slower cycles for improved knotter troubleshooting. Controlled via ISOBUS display or included Bluetooth remote (functions: enable, slow/fast forward, slow/fast reverse, service lights).

Wear parts box
Optional wear parts kit for L331R and L341R contains common wear items packaged with magnetic parts lists. Contents include:

• Pickup teeth — 20
• Pickup strippers — 4
• Pickup stripper bolts — 4
• Left-hand cam arm — 1
• Right-hand cam arm — 1
• Cam arm bearing — 4
• Cam arm bolt — 2
• Bill hooks — 6
• Wiper plates — 6
• Twine knives — 6
• Twine discs — 3
• Twine retainer — 3
• Twine cleaner — 3
• Needle roller kit — 6
• Proximity sensor — 2
• Bottom knives bolts — 6
• Bottom knives center — 2
• Bottom knives end — 1

Technical specifications

• Bale size: 80 x 90 cm (3 x 3 ft)
• Bale dimensions — Width: 80 cm (32 in.) — Height: 90 cm (35 in.) — Length: 60 to 300 cm (24 to 118 in.)
• Number of knotters: 4
• Knives: 11, 7, or 6
• Machine width: 2.76 m (9.1 ft)
• Machine height: 2.7 m (8.9 ft)
• Machine weight: 7,700 kg (16,975 lb)
• Minimum tractor requirement: 86 kW / 115 PTO hp — no Pre-Cutter; 97 kW / 130 PTO hp — with Pre-Cutter
• Pickup intake width: 220 cm (86 in.)
• Pickup diameter: 25.6 cm (10 in.)
• Number of tine bars on pickup: 4
• Tine spacing: 6.6 cm (2.6 in.)
• High-capacity rotor: Yes
• Intake knives: 11, 7, or 6; cutting length: 44 mm (1.7 in.) or 88 mm (3.5 in.); knife protection: individual spring
• Slide-out floor: Yes
• Number of plunger strokes: 45 spm
• Plunger stroke: 69.5 cm (27 in.)
• Density control: Three hydraulic cylinders
• Bale chamber length: 305 cm (120 in.)
• Control: ISOBUS — GreenStar 2 1800 or GreenStar 3 2630
• Twine capacity (rolls): 30
• Single axle tire options: 600/50/22.5 or 710/40R/22.5
• Tandem steered axle (optional): 500/55/20 or 550/45/22.5
• Brakes system: Optional hydraulic
• Machine dimensions — Length: 7.8 m (25.6 ft); Width: 2.76 m (9.1 ft); Height: 2.7 m (8.9 ft)
