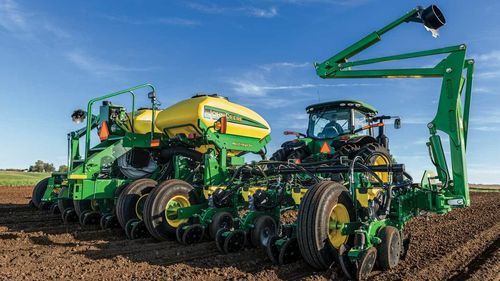

Automatic planter 1775NT 30

towed

Overview
The 1775NT 12Row30 is a drawn planter engineered for commercial row-crop planting with 12 rows on 30-in. (76 cm) spacing. Configurations include standard MaxEmerge™ 5 row units and optional ExactEmerge™ or MaxEmerge™ 5e units. The 3-section folding frame provides 21° up/down flex and a narrow 12 ft. transport width.

Key features

• 12 rows at 30 in. (76 cm) spacing
• Standard MaxEmerge™ 5 row units; optional ExactEmerge™ or MaxEmerge™ 5e
• Row-unit hopper options: mini-hopper, 1.6-bu. (approx. 58 L), 3-bu. (approx. 106 L)
• Insecticide option for mini-hopper and 1.6-bu. hoppers
• 3-section frame with 21° up/down articulation and 12 ft. transport

Planting delivery and meter technology

• ExactEmerge™ trench delivery with BrushBelt™ to maintain seed spacing at higher speeds and reduce seed bounce; supports planting up to 16.1 km/h (10 mph)
• BrushBelt™ is self-cleaning with a brush conditioner to remove residue
• Seed sensors on ExactEmerge cartridges provide high-speed seed detection and accurate row-unit data
• Meter base: vacuum; optional finger pickup and other meter choices

Fertilizer and in-furrow product systems

• ExactShot™ on-seed liquid dosing: pulse-per-seed or continuous modes to minimize product use while ensuring placement
• ExactRate™ liquid fertilizer system: hydraulic pump, closed-loop control, flowmeter, pressure sensor, PWM nozzles, row-by-row control and G5 integration
• ExactRate fluid transfer enables transfer between tractor and planter tanks to increase capacity
• Factory-installed liquid tanks available up to 2271 L (600 gal.) on select configurations; sight tube and overflow protection
• Fertilizer level sensors and CCS™ tank level sensing integrate with SeedStar™ 5 and John Deere Operations Center

Frame, mobility and ground pressure

• 3-section folding frame with 21° up/down flex for contour following
• Optional factory-installed Soucy tracks reduce center-section ground pressure and improve flotation; enable higher transport speeds
• Base implement tire: VF245/70R19.5; Soucy tracks available as an option

Downforce and depth control

• Individual Row Hydraulic Downforce (IRHD): closed-loop per-row control, reacts up to 5×/s; range ~22.7 kg to 204.1 kg (50–450 lb)
• Integrated pneumatic downforce: electronically controlled, adjustable ~6.8 to 181.4 kg (15–400 lb)
• Heavy-duty mechanical downforce springs with four settings

Electronics, monitoring and connectivity

• SeedStar™ 5 planter app (with G5 displays and Implement Ethernet) for 5 Hz documentation and advanced features
• Planter auxiliary camera with magnetic mount and SeedStar 5 Ethernet integration; video streamed to CommandCenter™
• Tank level sensing and remote monitoring via John Deere Operations Center and JDLink™ where installed
• Mobile row-unit diagnostic and setup via Equipment Mobile app

Operational benefits

• ExactShot™ and ExactRate™ improve on-seed product placement and reduce waste
• BrushBelt™ and ExactEmerge™ maintain accurate seed placement at higher operating speeds
• Liquid Transfer Automation and level sensing reduce operator workload and refilling risk

Technical specifications

• Number of rows: 12
• Row spacing: 76 cm / 30 in.
• Frame flex: 21° up/down
• Row-unit hopper capacities: mini-hopper (~2.2 L), 1.6-bu (~58 L), 3-bu (~106 L)
• Seed meters (base): Vacuum; optional finger pickup and others
• Row units (standard): MaxEmerge™ 5; optional ExactEmerge™ or MaxEmerge™ 5e
• Opener: Tru-Vee double disk
• Drive system (base): Hydraulic variable rate drive
• Implement tire (base): VF245/70R19.5; optional Soucy tracks
• Example fertilizer tank capacity: up to 2271 L (600 gal.) depending on configuration
• Example CCS™ seed capacity (where equipped): up to 3524 L / 100 bu
• Max planting reference speed with ExactEmerge/BrushBelt: up to 16.1 km/h (10 mph)
