Automatic planter 1725C

towed

Overview

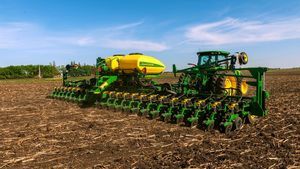

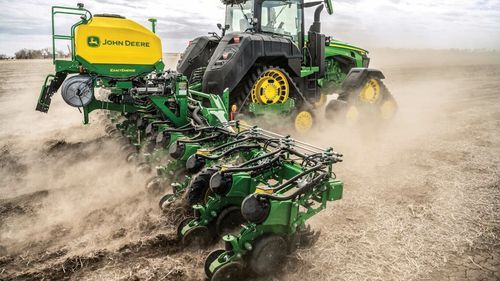

The 1725C Planter is a stack-folding integral planter available in 12-row and 16-row configurations. It is offered with multiple row-spacing options, optional Central Commodity System (CCS™) seed delivery, and is compatible with ExactEmerge™ or MaxEmerge™ 5e row units and electric drive options. It features hydraulic wing locks, increased CCS tank capacity, folding staircase, and multiple precision-ag and fertilizer/seed sensing technologies.

Highlights

• 12-row: available in 36-, 38-, or 40-in. spacing (no lift-assist wheels)
• 12-row: available in 30 in. spacing (base 12-row 30 in. with base code 355MH)
• 16-row: 30-in. spacing (optional lift-assist wheels)
• Hydraulic wing locks for faster field-to-field transport
• Increased CCS tank from 35- to 55-bushel (1938 L / 55 bu)
• Available with optional ExactEmerge™ or MaxEmerge™ 5e Row Unit
• Folding staircase to prevent damage and improve accessibility

Key Features and Technology

• Planter auxiliary camera integrated into SeedStar™ 5 planter Ethernet system; adjustable magnetic mount and configurable video triggers; streams video to CommandCenter™ display.
• Liquid fertilizer level sensors (model year 2026 electric drive planters): display fertilizer tank levels on G5 CommandCenter™ and enable low-level alarms and remote monitoring.
• CCS™ tank level sensors (model year 2026 electric drive planters with CCS): provide seed tank percent and total tank level monitoring in SeedStar™ application and remote viewing.
• ExactShot™ liquid fertilizer dosing system: delivers liquid fertilizer directly onto the seed in-furrow to reduce in-furrow fertilizer usage and increase efficiency; supports dosing and continuous modes.
• ExactEmerge™ trench delivery and BrushBelt™ delivery system: improves seed placement accuracy at higher speeds and reduces seed bounce; self-cleaning toothbrush/brushbelt design; sensors integrated into cartridges provide accurate seed event sensing.
• Electric drive hopper options for non-CCS models: factory-installed hopper options for ExactEmerge or MaxEmerge 5e with hoppers (1.6 bu, 2.7 bu, 3.0 bu) — extends electric-drive agronomics to non-CCS configurations.
• ExactRate™ fluid transfer system: enables easy fluid transfer between ExactRate tractor tanks and planter, designed to avoid pinching lines when folding.
• Integral stack-folding frame: three-section stack-fold frame that can operate rigid or flex (flex up to 8 degrees up/down referenced elsewhere on page); Category 3/4N quick hitch compatibility; vacuum routed through frame for cleaner appearance and better visibility.
• Optional hydraulic wing downforce / gull-wing and automatic hydraulic wing locking for faster folding/unfolding from the tractor controls.
• Active pneumatic downforce base equipment: automates row-unit downforce control for consistent planting depth at speeds up to 16.1 km/h (10 mph).
• Individual Row Hydraulic Downforce (IRHD): closed-loop system that reacts on an individual row basis; fast response (adjusts up to 5x per second), range 22.7 kg (50 lb) to 204.1 kg (450 lb) applied downforce; includes rechargeable accumulators for durability.
• Easy Adjust row cleaners: pneumatic, on-the-go adjustable from the cab; three saved presets per operator; works with SeedStar displays.
• Mobile row-unit runoff: enables diagnostic and meter performance tests from a mobile device for preseason and in-field adjustments; supported for ExactEmerge and MaxEmerge 5e units (software/attachment required for some models).
• Curve compensation: maintains correct population across curved rows by compensating individual row speed differences to reduce population variance on turns.
• SeedStar™ 5 (Model Year 2025+): G5 display paired with Implement Ethernet enabling higher-definition documentation, faster data speeds (5Hz), and support for new technologies such as ExactShot and FurrowVision.

Configurations / Base Codes
Base Code | Description
355MH | 1725C 12Row 30 in.
355NH | 1725C 12Row 36 or 38 in.
355PH | 1725C 12Row 38 or 40 in.
355RH | 1725C 16Row 30 in.

Notes & Ordering

• 1725C is available in multiple factory and aftermarket configurations; review Build & Price and ordering guides for the latest options and region-specific constraints.
• ExactEmerge availability varies by row spacing (ExactEmerge not available on 30-in. units in some configurations).

caractéristiques / spécifications techniques

• Manufacturer: John Deere
• Model / Denomination commerciale: 1725C
• Number of rows: 12 (base spec shown); also available as 16-row configuration
• Row spacing options: 12-row: 91.4 cm or 96.5 cm (36 or 38 in.) and 36/38/40 in. variants; 16-row: 30 in.
• Frame fold configuration: Stack-folding integral frame
• Frame flexibility: Up: 10° (table) / Down: 7° (table) — other sections reference up to 8° flex each way for specific wording
• Row unit seed hoppers: Mini-hoppers (factory hopper options available for electric-drive non-CCS models)
• Seed meters (base): Vacuum meters (base)
• Central Commodity System (CCS) seed capacity: 1938 L (55 bu) with LED tank lights (when equipped)
• Drive system (base electric option): Electric drive — EPTO only: 56 V (electric drive option supported)
• Lift system: Integral only
• Tires (base): 12.5L-15SL 20 ply implement (recommended 303 kPa / 44 psi) or 7.60-15 8 ply implement (359 kPa / 52 psi) or 7.6-15 6 ply traction (276 kPa / 40 psi) depending on configuration
• Row unit types supported: ExactEmerge™ or MaxEmerge™ 5e row units
• Opener type: Tru-Vee double disk
• Row-unit downforce options: Active pneumatic downforce (base) or Individual Row Hydraulic Downforce (IRHD) available
• ExactShot™ dosing system: in-furrow liquid fertilizer dosing (reduces product usage vs continuous stream; two modes: dosing and continuous)
• Additional precision features: Planter auxiliary camera (SeedStar 5 integration), CCS/CCS tank and seed-level sensing, fertilizer-level sensing, SeedStar™ 5 support, curve compensation, mobile row-unit runoff diagnostics, Easy Adjust row cleaners
