Automatic planter DB44 22
towed

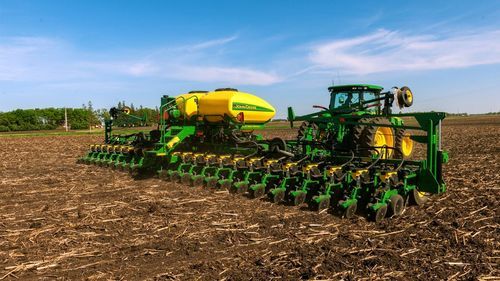

Automatic planter - DB44 22 - John Deere Forestry - towed
Automatic planter - DB44 22 - John Deere Forestry - towed
Add to favorites
Compare this product

Characteristics

Type
automatic
Mobility
towed

Description

Overview
  • 44-ft. toolbar with 24 rows on 22-in. spacing.
  • Available with mini-hopper, 1.6-bu., or 3-bu. ExactEmerge™ or MaxEmerge™ 5e row units.
  • Requires a minimum 235-hp tractor equipped with Category 4 drawbar.

Visibility and monitoring
  • Planter auxiliary camera with adjustable magnetic mounting base. Camera integrates into SeedStar™ 5 planter Ethernet system and streams video to G5 CommandCenter™ display; mirror-image view and field-of-view adjustment available from display.
  • SeedStar™ electronic system (SeedStar 5 for model year 2025 and newer) provides high-definition documentation, faster data speeds, and is the platform for new planter technology such as ExactShot™ and FurrowVision.
  • Seed monitor: SeedStar electronic monitoring system provides in-cab seed monitoring and documentation.

Seed and commodity handling
  • Central Commodity System (CCS™) tank seed capacity: 3524 L (100 bu) standard; with Refuge Plus option: 4405 L (125 bu).
  • Row unit seed hoppers: vacuum meter capacity 2.2 L (0.062 bu) per row unit (vacuum seed meters standard).
  • Seed level sensing (model year 2026 electric drive planters with CCS tanks and SeedStar 5) displays individual and total tank levels on the G5 CommandCenter display and enables low-level alarms and remote viewing via John Deere Operations Center™ mobile app.

Fertilizer systems and logistics
  • ExactShot™ liquid fertilizer dosing system delivers product directly onto the seed in-furrow in a dosing (on-seed) or continuous mode; dosing mode reduces in-furrow fertilizer use and synchronizes dosing with seed drop when paired with ExactEmerge™ BrushBelt™ technology.
  • ExactRate™ liquid fertilizer system (factory-installed) provides accurate in-furrow or offset delivery with closed-loop speed and rate compensation, row-by-row flow detection, and full integration into the G5 Universal Display.
  • ExactRate Fluid Transfer System enables easy transfer between ExactRate tractor tanks and planter tank, enabling combined capacity up to the specified combined capacity values (system factory installed; designed to avoid line pinch during folding).
  • Liquid fertilizer level sensing (available on model year 2026 electric drive planters) displays fertilizer tank levels in the SeedStar app and supports tendering logistics and customizable low-level alarms.
  • Liquid tank options: factory-installed liquid tanks up to 2271 L (600 gal) capacity with clear sight tube, air bleed, and overflow protection.
  • Liquid Transfer Automation allows automated fertilizer transfer from tractor to planter when configured in SeedStar 5, reducing operator tasks and helping manage tank weight distribution.

Drive, metering, and application accuracy
  • Seed meters: vacuum meter base; designed to work with ExactEmerge™ and MaxEmerge™ 5e row units.
  • Variable-rate drive motors and closed-loop systems available for precise seed and fertilizer application; features include turn compensation and curve compensation to maintain population accuracy across curved passes.
  • ExactRate and ExactShot systems use central flowmeters, pressure sensors, and nozzle bodies with pulse-width modulation (PWM) to achieve accurate application and documentation.

Row-unit and downforce technologies
  • ExactEmerge™ row units or MaxEmerge™ 5e row units available; Tru-Vee double-disk openers.
  • Individual Row Hydraulic Downforce (IRHD): closed-loop, row-by-row hydraulic downforce system reacting quickly to changing soil conditions; adjustable applied downforce with rapid response and accumulators for durability.
  • Integrated pneumatic and active pneumatic downforce options: set-point or active control via G5 Display/SeedStar 5 to maintain target downforce margin across the planter (factory installed or available as attachment/upgrade).
  • Heavy-duty adjustable downforce springs provide up to 181.4 kg (400 lb) of downforce with selectable settings.

Tillage, row preparation and closing
  • Easy Adjust row cleaners with coulter combo provide pneumatic, in-cab adjustable row tillage; three presets and sectional control (wings/center) to adapt to field conditions.
  • Row cleaner SharkTooth® design for effective residue management and uniform seedbed preparation.
  • Closing systems and options include rubber-tire and cast-iron closing choices (various closing system options supported).

Lighting, tank and accessory features
  • LED planter lighting package improves night visibility and row-unit illumination; lights activate with tractor lights.
  • Factory-installed skid/frame-mounted liquid tanks and fittings with sight tubes and overflow protection; components styled to match CCS tanks.

Connectivity and support
  • SeedStar 5 paired with G5 displays and Implement Ethernet for high-definition documentation and support of new planter technologies and future automation capabilities.
  • Mobile row-unit runoff feature enables remote row-unit diagnostic tests and meter adjustments from a mobile device via the Equipment Mobile app for preseason and in-season verification.
  • John Deere Connected Support™ and JDLink™ telematics enable remote monitoring, proactive alerts, remote diagnostics, and remote software reprogramming to reduce downtime and support service response.

Caractéristiques / spécifications techniques
  • Model designation: DB44 24Row22
  • Manufacturer: John Deere
  • Number of rows: 24
  • Row spacing: 56 cm / 22 in.
  • Toolbar width: 44 ft.
  • Minimum tractor requirement: 235 hp with Category 4 drawbar
  • Row unit seed hopper capacity (vacuum meter): 2.2 L (0.062 bu)
  • Seed meters (base): Vacuum meter
  • Central Commodity System (CCS) seed capacity: 3524 L (100 bu); with Refuge Plus option: 4405 L (125 bu)
  • Fertilizer tank capacity (example spec): 350 Imperial gal / 1590 L / 420 U.S. gal
  • Average frame empty transport weight: 9,344 kg (20,600 lb)
