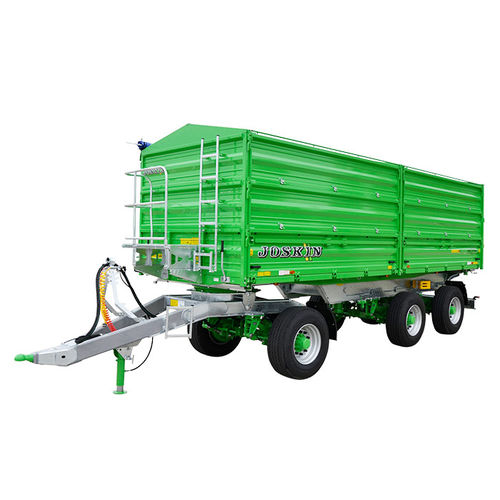

dump trailer / 3-axle / agricultural / 18 ton
TETRA-SPACE Series

{{requestButtons}}

Characteristics

  • Construction:

    dump

  • Number of axles:

    3-axle

  • Application:

    agricultural

  • Payload:

    18 ton, 24 ton

  • Other characteristic:

    tipping, 3-way

Description

Multi-purpose tipping trailer with 3-side tipping. Fixed double-axle at the back. 18 tons loading capacity. Height from 1000 mm to 1400 mm.
Turntable:
The front axle on turntable gives all the agility of a carrier. Parabolic leaves fitted on the axle serve as suspension.
Double-axle at the back:
The running gear is made of one front axle and two fixed axles at the back.
Lowered narrow chassis:
The lowered chassis makes it possible to lower the centre of gravity and facilitates the loading. Its narrowness allows the fitting of wide wheels to maximize the stability.
