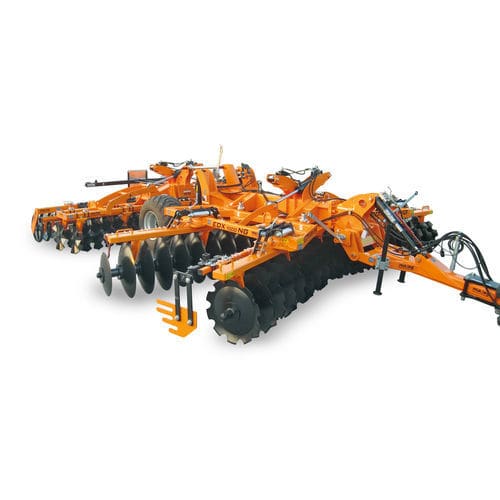

Towed disc harrow EDX 1000 NG serieswith hydraulic adjustment
Add to favorites
Compare this product
Characteristics
- Mobility
- towed
- Other characteristic
- with hydraulic adjustment
- Width
3.4 m, 3.85 m, 4.3 m, 4.75 m
(11'01" , 12'07" , 14'01" , 15'07" )
Description
EQUIPMENT:Trailed/ half - brought
TRACTOR ARM ATTACK:Swiveling (for half - brought equipment)
CENTRAL FRAME:Tubular steel 250x150x12,5 mm
SECTIONS:Tubular steel 140x70x7 mm
SUPPORTS:Two conical roller bearings, swiveling, with interchangeable crankcase system ma/ag
CARRIAGE CONTROL:Double effect jack with hydraulic slider for working depth regulation
DISC AXLE:Steel square 40x40 mm
WHEELS AXLE:Steel square 60x60 mm - 6 holes hub
WHEELS:400/60-15.5
SOIL SCRAPERS:Individual adjustable plungers
SECTIONS CONTROL:Manual with perforated plate. At demand, hydraulic and independent movement for front and rear
DISCS:Diam. 610 mm thickness 5 mm or Diam. 660 mm thickness 6 mm. disc distance 230 mm
PICK UP DISCS:On series
