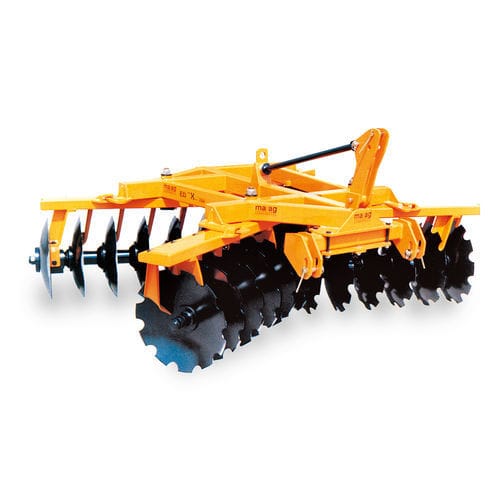

Mounted disc harrow EDX 780 series

double offset3-point hitchwith hydraulic adjustment

Polyvalent equipment used for working and for mixing the hard ground or for crumbling and levelling the soil already worked. EDX disc harrows are characterized by a wide range of usage with working width from 1,50 m to 7,30 m and variable working depth from 10 to 25 cm (according to the model). The supports of the discs are oscillating with double contrasting conical roller bearings, oil seal, greaser and interchangeable crankcase (ma/ag system). The hydraulic regulation of the four sections of the discs, front and rear, allows a progressive and independent variation of the angle of incidence in order to obtain the optimal work on different kind of ground. The strong structure guarantees an adequate flex-torsion rigidity and allows (where expected) to complete the equipment with a wide range of accessories.
