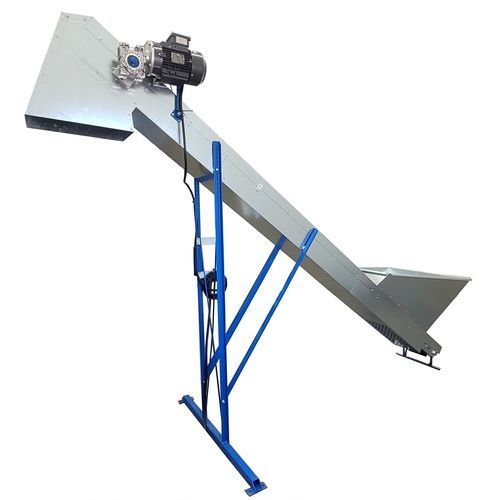

Vertical bucket elevator SB 07

Product name
Soil elevator conveyor SB 07

Description
The soil elevator conveyor is designed to move all types of soil and growing media. Its adjustable unloading level allows integration with most soil fillers and mixers.

Performance
Soil flow: 16 cu ft/min (0.45 m³/min).

Motor
1.5 HP motor; various voltages available.

Dimensions

• Working position - Width: 48 in (122 cm)
• Working position - Height: 96.5 to 112 in (244 to 284 cm) adjustable
• Funnel - Length: 36 in (91 cm)
• Funnel - Width: 35 in (89 cm)
• Funnel - Height: 39 in (99 cm) adjustable
• Output - Length: 12 in (30 cm)
• Output - Width: 20 in (51 cm)
• Output - Height: 75 to 89 in (190 to 226 cm) adjustable

Options
Soil level sensors optional.

Technical specifications

• Model: SB 07
• Soil flow / yield: 16 cu ft / minute (0.45 m³/min)
• Motor: 1.5 HP (various voltages available)
• Working width: 48 in (122 cm)
• Working height (adjustable): 96.5–112 in (244–284 cm)
• Funnel size (L×W×H adjustable): 36 in (91 cm) × 35 in (89 cm) × 39 in (99 cm)
• Output size (L×W×H adjustable): 12 in (30 cm) × 20 in (51 cm) × 75–89 in (190–226 cm)
• Optional: soil level sensors
