Container conveyor SB10

beltrollertelescopic

Overview

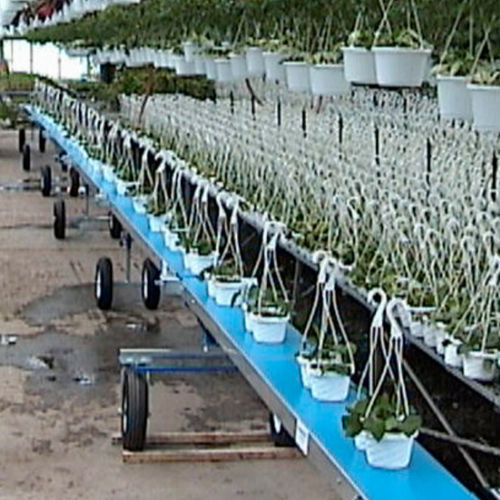

The SB10 portable telescopic conveyor is a modular conveyor system for loading and transfer operations. Designed for two-person setup, 100' (30.48 m) of conveyor can be deployed in under 3 minutes. The robust first section supports stacking of up to seven additional sections; all sections are on wheels for fast indoor/outdoor relocation and simplified handling.

Improvements / New generation
This new generation features higher-quality rollers, an aluminium junction system for quick disassembly, a square drive shaft for reliable power transmission and a new belt-tension scale. Design refinements reduce friction and maintenance requirements and provide multiple installation configurations.

Motorless section

• Length: 12.5' (3.81 m) per section
• Belt width: 12" (30 cm)
• Each section supplied with wheels and tripod
• Inclination capability: up to 40°
• V-guide under the belt for constant alignment
• Adjustable leg: 26" (66 cm) to 36" (91 cm) with 16" (41 cm) wheel
• Axle widths: wide 27" / narrow 19" (alternating)
• Weight (with tripod and wheel): 110 lb (49 kg)
• Maximum load: 150 lb (68 kg) per section — approx. 1200 lb per 100' (30.48 m)
• Alternative configuration: 75 lb (34 kg) per section — approx. 900 lb per 150' (45.72 m)

Motorized section

• Length: 12.5' (3.81 m)
• Belt width: 12" (30 cm)
• One motorized section can drive 7 sections (100') for heavy containers or up to 11 sections (150') for lighter loads
• Variable-speed control with forward/reverse switch
• Strong frame able to support 7 additional sections and the power pack
• Adjustable leg: 26" (66 cm) to 36" (91 cm) with 16" (41 cm) swivel wheel
• Total width (motorized): 38"
• Belt speed (motorized): 0 to 82 ft/min (0–25 m/min approx.)
• Weight (with tripod, wheel, frame and power pack): 275 lb (124 kg)

Power

• Available: 120 V or 230 V single phase
• Typical motor: 1 HP DC, 10 A, variable speed forward/reverse per 100' driven
• Other power configurations available on request

Options

• Plug tray rack
• 90° transfer guide to transfer containers to another conveyor
• Wheel corner
• Motorized transfer corner
• Wireless limit switch
• Mini power unit
• Small pot transfer rod
• Start/stop remote control for one or multiple motorized sections
• Wagon for motorless sections

Technical specifications

• Model: SB10
• Standard section length: 12.5' (3.81 m)
• Standard belt width: 12" (30 cm)
• Motorless section weight: 110 lb (49 kg)
• Motorized section weight (with power pack): 275 lb (124 kg)
• Adjustable leg: 26" (66 cm) to 36" (91 cm)
• Wheel diameter: 16" (41 cm)
• Axle widths: 27" (wide) / 19" (narrow) alternating
• Maximum inclination: 40°
• Belt speed (motorized): 0–82 ft/min
• Maximum load examples: up to 150 lb (68 kg) per section (approx. 1200 lb / 100'); alternative 75 lb (34 kg) per section (approx. 900 lb / 150')
• Power options: 120 V or 230 V single phase; 1 HP DC motor, 10 A
