Belt conveyor segment SB 10EPC

Product overview
The SB 10EPC is a portable conveyor section designed for flexible on-site configurations: table-mounted, tripod-mounted or floor-mounted. The unit accepts two different power units in three installation configurations. A 'V' guide under the belt ensures continuous tracking and alignment. The drive uses a low‑maintenance transfer casing. Conveyor lines can be extended indefinitely by adding additional power units.

Main features

• Belt speed: 0 to 82 ft/min (approx. 0–25 m/min)
• Power: 120 V and 220 V single phase, 60 Hz
• Motor: 1 x 1 HP, 10 A drive
• Drive control: Variable speed, forward/reverse
• Load capacity: 150 lbs per section (≈68 kg) / 1200 lbs per 100 ft (≈545 kg); 75 lbs per section (≈34 kg) / 900 lbs per 150 ft (≈409 kg)

Dimensions and weights

• Standard section length: 12.5 ft (3.8 m)
• Belt width: 12 in (30 cm)
• Weight: conveyor unit 84 lbs (38 kg)
• Power unit SB 10DPK weight: 48 lbs (22 kg)
• Power unit SB 10PK weight: 41 lbs (18 kg)

Options

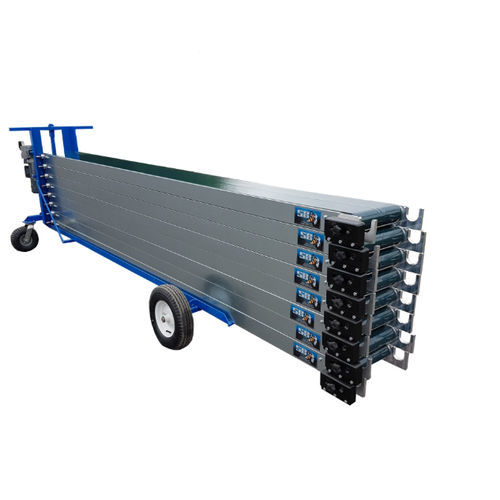

• SB 10PCW portable conveyor wagon
• Motorized belt transfer corner
• Guide-rail corner guide
• Wheel corner
• Small pot transfer rod
• Wireless limit switch
• Start/stop remote control
• Plug tray rack

Notes

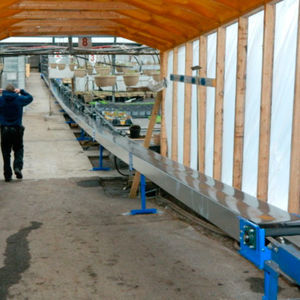

In 2021 our conveyors were introduced in Australia; image gallery documents arrivals and installations.

Technical specifications

• Model: SB 10EPC
• System: Portable conveyor; mountable on table, tripod or floor
• Guide: 'V' guide under belt for continuous tracking and alignment
• Transfer: Low‑maintenance transfer casing
• Belt speed: 0–82 ft/min (≈0–25 m/min)
• Voltage: 120 V and 220 V, single phase, 60 Hz
• Motor: 1 x 1 HP, 10 A
• Drive: Variable speed, forward/reverse
• Load capacity: 150 lbs/section (1200 lbs/100 ft) or 75 lbs/section (900 lbs/150 ft)
• Section length: 12.5 ft (3.8 m)
• Belt width: 12 in (30 cm)
• Weights: conveyor 84 lbs (38 kg); SB 10DPK 48 lbs (22 kg); SB 10PK 41 lbs (18 kg)
• Expandable: unlimited line length by adding power units
